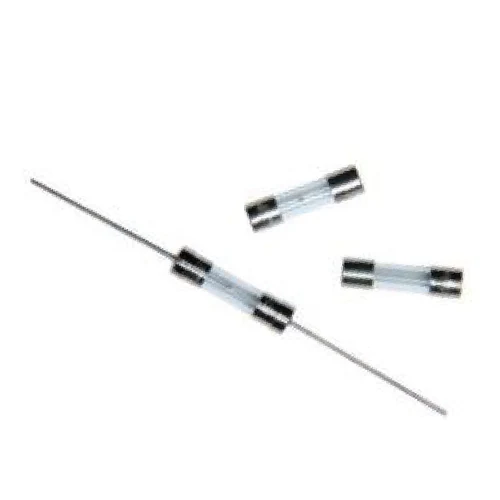

HOLLY FUSE 51MS-100H 250V AC 10A Medium Slow-Blow Glass Fuse

Name: HOLLY FUSE 51MS-100H 250V AC 10A Medium Slow-Blow Glass Fuse
Brand: Hollyland
SKU: 51MS-100H

Part Number: 51MS-100H

● Check availability

Manufacturer-checked specifications for HOLLY FUSE 51MS-100H: 10A, 250V AC. Interrupting capacity: 200A at 250V AC. Confirmed common approvals: UL, cUL.

Rated Current10A

Rated Voltage250V AC

Breaking Capacity200A at 250V AC

Package5.2×20mm

Tags

250V AC 5×20mm Cartridge / Clip Glass Tube Fuses Time-Lag (T)

HOLLY FUSE 51MS-100H: medium slow-blow glass fuse, 10A, 250V AC. Interrupting capacity: 200A at 250V AC. Confirmed common approvals: UL, cUL. Applicable standards: UL 248-1, UL 248-14. Source: Current Fuse catalogue p33.

Technical Specifications

Part Number: 51MS-100H
Manufacturer Part Number: 51MS-100H
Series: 51MS
Fuse Type: Glass Tube Fuse
Current Rating: 10A
Voltage Rating: 250V AC
AC / DC: AC
Breaking Capacity: 200A at 250V AC
Operating Temperature: -55°C to +125°C
Package / Dimensions: 5.2×20mm
Mounting: Cartridge / Clip
Application: Electronic Circuit Protection
Standard: UL 248-1 · UL 248-14
Terminal Type: Ferrule
Fuse Speed: Medium Time-Delay
Approvals: cULus · UL
Certifications: UL · cUL
Reference Lead Time: 2–4 weeks
Rated current: 10A
Rated voltage: 250V AC
Fuse characteristic: Medium Slow-Blow
Fuse construction: Glass Tube Fuse
Standards: UL 248-1, UL 248-14
Interrupting capacity: 200A at 250V AC
Manufacturer-listed approval authorities: UL/cUL, UR, CSA, PSE and KC are listed by the manufacturer; exact approvals vary by rating/voltage. 52MS-100H is specifically noted as not UL approved.
Operating temperature: -55°C to +125°C
Source: Hollyland Current Fuse catalogue, printed page 33
