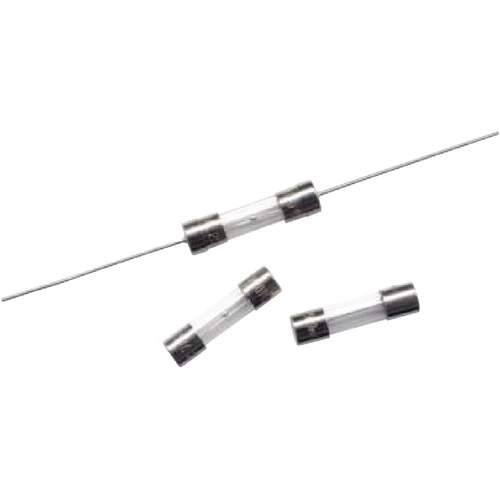

HOLLY FUSE 50T-150H 250V AC 15A Time-Lag Glass Fuse

Name: HOLLY FUSE 50T-150H 250V AC 15A Time-Lag Glass Fuse
Brand: Hollyland
SKU: 50T-150H

Part Number: 50T-150H

● Check availability

50T-150H from HOLLY FUSE provides 15A, 250V AC protection for electronic and electrical equipment.

Rated Current15A

Rated Voltage250V AC

Breaking Capacity150A at 250V AC (35A or 10×In, whichever is greater)

Package5.2×20mm

Tags

250V AC 5.2×20mm 50T Glass Tube Fuse Time-Lag

For applications requiring 15A, 250V AC, HOLLY FUSE 50T-150H provides the manufacturer-specified characteristics of the 50T family. Interrupting capacity: 150A at 250V AC (35A or 10×In, whichever is greater). Standards: IEC 60127, GB 9364. Verified against catalogue p36.

Technical Specifications

Part Number: 50T-150H
Manufacturer Part Number: 50T-150H
Series: 50T
Fuse Type: Glass Tube Fuse
Current Rating: 15A
Voltage Rating: 250V AC
AC / DC: AC
Breaking Capacity: 150A at 250V AC (35A or 10×In, whichever is greater)
I²t: 1668 A²s
Operating Temperature: -55°C to +125°C
Package / Dimensions: 5.2×20mm
Mounting: Cartridge / Clip
Application: Electronic Circuit Protection
Standard: GB 9364 · IEC 60127
Terminal Type: Ferrule
Fuse Speed: Time Delay
Reference Lead Time: 2–4 weeks
Rated current: 15A
Rated voltage: 250V AC
Fuse characteristic: Time-Lag
Fuse construction: Glass Tube Fuse
Interrupting capacity: 150A at 250V AC (35A or 10×In, whichever is greater)
Standards: IEC 60127, GB 9364
Manufacturer approval note: CCC, CQC, SEMKO, VDE, BSI, IMQ, UR/cUR, CSA, PSE and KC are listed; exact approvals vary by rating.
Source: Hollyland Current Fuse catalogue, printed page 36
