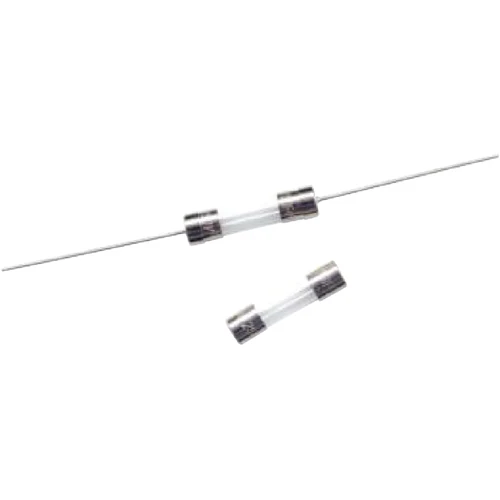

HOLLY FUSE 50F-0800H 250V AC 800mA Quick-Acting Glass Fuse

Name: HOLLY FUSE 50F-0800H 250V AC 800mA Quick-Acting Glass Fuse
Brand: Hollyland
SKU: 50F-0800H

Part Number: 50F-0800H

● Check availability

HOLLY FUSE 50F-0800H combines its rated protection value with 250V AC operation in the 50F product family.

Rated Current800mA

Rated Voltage250V AC

Breaking Capacity35A at 250V AC (35A or 10×In, whichever is greater)

Package5.2×20mm

Tags

250V AC 5.2×20mm 50F Glass Tube Fuse Quick-Acting

Part 50F-0800H is a HOLLY FUSE 50F-series quick-acting glass fuse with specifications of 800mA, 250V AC. Interrupting capacity: 35A at 250V AC (35A or 10×In, whichever is greater). Standards: IEC 60127, GB 9364. Technical data checked against catalogue p35.

Technical Specifications

Part Number: 50F-0800H
Manufacturer Part Number: 50F-0800H
Series: 50F
Fuse Type: Glass Tube Fuse
Current Rating: 800mA
Voltage Rating: 250V AC
AC / DC: AC
Breaking Capacity: 35A at 250V AC (35A or 10×In, whichever is greater)
I²t: 0.5747 A²s
Operating Temperature: -55°C to +125°C
Package / Dimensions: 5.2×20mm
Mounting: Cartridge / Clip
Application: Electronic Circuit Protection
Standard: GB 9364 · IEC 60127
Terminal Type: Ferrule
Fuse Speed: Fast Acting
Reference Lead Time: 2–4 weeks
Rated current: 800mA
Rated voltage: 250V AC
Fuse characteristic: Quick-Acting
Fuse construction: Glass Tube Fuse
Interrupting capacity: 35A at 250V AC (35A or 10×In, whichever is greater)
Standards: IEC 60127, GB 9364
Manufacturer approval note: CCC, CQC, SEMKO, VDE, BSI, IMQ, UR/cUR, CSA, PSE and KC are listed; exact approvals vary by rating.
Source: Hollyland Current Fuse catalogue, printed page 35
