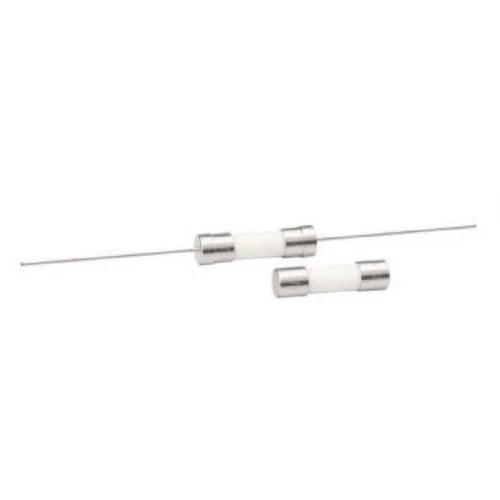

HOLLY FUSE 50CT-063H 250V AC 6.3A Time-Lag Ceramic Fuse

Name: HOLLY FUSE 50CT-063H 250V AC 6.3A Time-Lag Ceramic Fuse
Brand: Hollyland
SKU: 50CT-063H

Part Number: 50CT-063H

● Check availability

50CT-063H from HOLLY FUSE provides 6.3A, 250V AC protection for electronic and electrical equipment.

Rated Current6.3A

Rated Voltage250V AC

Breaking Capacity1,500A at 250V AC

Package5.2×20mm

Tags

250V AC 5.2×20mm 50CT Ceramic Tube Fuse Time-Lag

For applications requiring 6.3A, 250V AC, HOLLY FUSE 50CT-063H provides the manufacturer-specified characteristics of the 50CT family. Interrupting capacity: 1,500A at 250V AC. Standards: IEC 60127, GB 9364. Verified against catalogue p38.

Technical Specifications

Part Number: 50CT-063H
Manufacturer Part Number: 50CT-063H
Series: 50CT
Fuse Type: Ceramic Tube Fuse
Current Rating: 6.3A
Voltage Rating: 250V AC
AC / DC: AC
Breaking Capacity: 1,500A at 250V AC
I²t: 101.3 A²s
Operating Temperature: -55°C to +125°C
Package / Dimensions: 5.2×20mm
Mounting: Cartridge / Clip
Application: Electronic Circuit Protection
Standard: GB 9364 · IEC 60127
Terminal Type: Ferrule
Fuse Speed: Time Delay
Reference Lead Time: 2–4 weeks
Rated current: 6.3A
Rated voltage: 250V AC
Fuse characteristic: Time-Lag
Fuse construction: Ceramic Tube Fuse
Interrupting capacity: 1,500A at 250V AC
Standards: IEC 60127, GB 9364
Manufacturer approval note: CCC, CQC, SEMKO, VDE, BSI, UR/cUR, PSE, KC and TÜV are listed; exact approvals vary by rating.
Source: Hollyland Current Fuse catalogue, printed page 38
