Hollyland

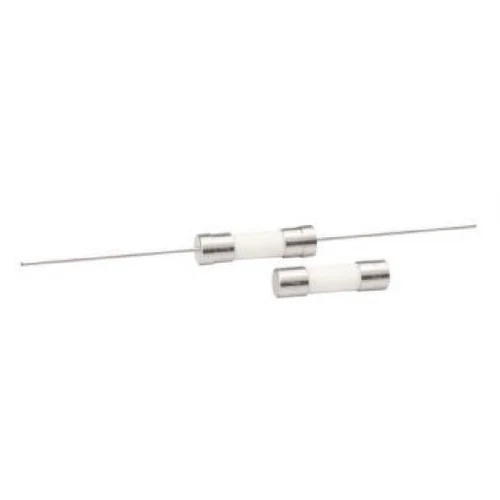

HOLLY FUSE 50CT-025H 250V AC 2.5A Time-Lag Ceramic Fuse

Name: HOLLY FUSE 50CT-025H 250V AC 2.5A Time-Lag Ceramic Fuse
Brand: Hollyland
SKU: 50CT-025H

Part Number: 50CT-025H

● Check availability

50CT-025H is part of the HOLLY FUSE 50CT range, specified at 2.5A, 250V AC.

Rated Current2.5A

Rated Voltage250V AC

Breaking Capacity1,500A at 250V AC

Package5.2×20mm

Tags

250V AC 5.2×20mm 50CT Ceramic Tube Fuse Time-Lag

Designed for circuit protection, HOLLY FUSE 50CT-025H is specified at 2.5A, 250V AC within the 50CT series. Interrupting capacity: 1,500A at 250V AC. Standards: IEC 60127, GB 9364. Source: Hollyland Current Fuse catalogue p38.

Technical Specifications

Part Number: 50CT-025H
Manufacturer Part Number: 50CT-025H
Series: 50CT
Fuse Type: Ceramic Tube Fuse
Current Rating: 2.5A
Voltage Rating: 250V AC
AC / DC: AC
Breaking Capacity: 1,500A at 250V AC
I²t: 7.781 A²s
Operating Temperature: -55°C to +125°C
Package / Dimensions: 5.2×20mm
Mounting: Cartridge / Clip
Application: Electronic Circuit Protection
Standard: GB 9364 · IEC 60127
Terminal Type: Ferrule
Fuse Speed: Time Delay
Reference Lead Time: 2–4 weeks
Rated current: 2.5A
Rated voltage: 250V AC
Fuse characteristic: Time-Lag
Fuse construction: Ceramic Tube Fuse
Interrupting capacity: 1,500A at 250V AC
Standards: IEC 60127, GB 9364
Manufacturer approval note: CCC, CQC, SEMKO, VDE, BSI, UR/cUR, PSE, KC and TÜV are listed; exact approvals vary by rating.
Source: Hollyland Current Fuse catalogue, printed page 38
