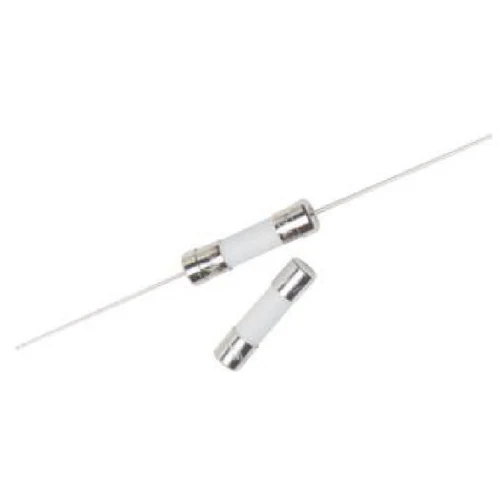

HOLLY FUSE 50CF-0800H 250V AC 800mA Quick-Acting Ceramic Fuse

Name: HOLLY FUSE 50CF-0800H 250V AC 800mA Quick-Acting Ceramic Fuse
Brand: Hollyland
SKU: 50CF-0800H

Part Number: 50CF-0800H

● Check availability

Verified HOLLY FUSE 50CF-0800H data includes 800mA, 250V AC and its catalogue-defined protection characteristic.

Rated Current800mA

Rated Voltage250V AC

Breaking Capacity1,500A at 250V AC

Package5.2×20mm

Tags

250V AC 5.2×20mm 50CF Ceramic Tube Fuse Quick-Acting

HOLLY FUSE 50CF-0800H belongs to the 50CF product family. Key verified data: 800mA, 250V AC. Interrupting capacity: 1,500A at 250V AC. Standards: IEC 60127, GB 9364. Reference: manufacturer catalogue p37.

Technical Specifications

Part Number: 50CF-0800H
Manufacturer Part Number: 50CF-0800H
Series: 50CF
Fuse Type: Ceramic Tube Fuse
Current Rating: 800mA
Voltage Rating: 250V AC
AC / DC: AC
Breaking Capacity: 1,500A at 250V AC
I²t: 0.121 A²s
Operating Temperature: -55°C to +125°C
Package / Dimensions: 5.2×20mm
Mounting: Cartridge / Clip
Application: Electronic Circuit Protection
Standard: GB 9364 · IEC 60127
Terminal Type: Ferrule
Fuse Speed: Fast Acting
Reference Lead Time: 2–4 weeks
Rated current: 800mA
Rated voltage: 250V AC
Fuse characteristic: Quick-Acting
Fuse construction: Ceramic Tube Fuse
Interrupting capacity: 1,500A at 250V AC
Standards: IEC 60127, GB 9364
Manufacturer approval note: CCC, CQC, SEMKO, VDE, BSI, UR/cUR, PSE and KC are listed; exact approvals vary by rating.
Source: Hollyland Current Fuse catalogue, printed page 37
