What are the current and voltage ratings of 42NM-0600H1?

42NM-0600H1 is rated 600mA at 300V AC.

What is the breaking capacity of 42NM-0600H1?

42NM-0600H1 has a breaking capacity of 50A at 300V AC. Confirm this covers the available fault current at the installation point.

What package size does 42NM-0600H1 use?

42NM-0600H1 uses 4.5×15mm package size.

Which standards and approvals apply to 42NM-0600H1?

42NM-0600H1 is listed under UL 248-1, UL 248-14.

What is 42NM-0600H1 used for?

42NM-0600H1 is listed for Electronic Circuit Protection applications. Verify suitability for your circuit before ordering.

What are the ordering terms for 42NM-0600H1?

42NM-0600H1: typical lead time 2–4 weeks. Submit a quote request for a firm quotation.

Hollyland

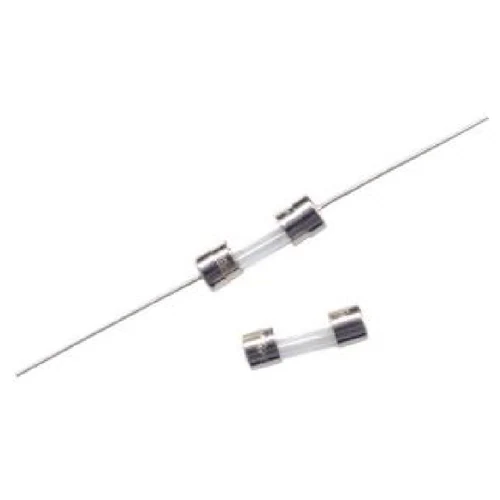

HOLLY FUSE 42NM-0600H1 300V AC 600mA Fast-Blow Glass Fuse

Name: HOLLY FUSE 42NM-0600H1 300V AC 600mA Fast-Blow Glass Fuse
Brand: Hollyland
SKU: 42NM-0600H1

Part Number: 42NM-0600H1

● Check availability

HOLLY FUSE 42NM-0600H1 is a fast-blow glass fuse in the 41NM family, rated 600mA, 300V AC.

Rated Current600mA

Rated Voltage300V AC

Breaking Capacity50A at 300V AC

Package4.5×15mm

Tags

300V AC 4.5×15mm Cartridge / Clip fast acting (f)Glass Tube Fuses

HOLLY FUSE 42NM-0600H1 is a fast-blow glass fuse in the 41NM series, rated 600mA, 300V AC. Interrupting capacity: 50A at 300V AC. Standards: UL 248-1, UL 248-14. Source: Hollyland Current Fuse catalogue p31.

Technical Specifications

Part Number: 42NM-0600H1
Manufacturer Part Number: 42NM-0600H1
Series: 41NM
Fuse Type: Glass Tube Fuse
Current Rating: 600mA
Voltage Rating: 300V AC
AC / DC: AC
Breaking Capacity: 50A at 300V AC
Operating Temperature: -55°C to +125°C
Package / Dimensions: 4.5×15mm
Mounting: Cartridge / Clip
Application: Electronic Circuit Protection
Standard: UL 248-1 · UL 248-14
Terminal Type: Ferrule
Fuse Speed: Fast Acting
Reference Lead Time: 2–4 weeks
Rated current: 600mA
Rated voltage: 300V AC
Fuse characteristic: Fast-Blow
Fuse construction: Glass Tube Fuse
Standards: UL 248-1, UL 248-14
Interrupting capacity: 50A at 300V AC
Manufacturer-listed approval authorities: UR/cUR, PSE and KC are listed by the manufacturer; exact approvals vary by rating and voltage.
Operating temperature: -55°C to +125°C
Source: Hollyland Current Fuse catalogue, printed page 31
