What are the current and voltage ratings of 42NM-012L?

42NM-012L is rated 1.2A at 125V AC.

What is the breaking capacity of 42NM-012L?

42NM-012L has a breaking capacity of 500A at 125V AC. Confirm this covers the available fault current at the installation point.

What package size does 42NM-012L use?

42NM-012L uses 4.5×15mm package size.

Which standards and approvals apply to 42NM-012L?

42NM-012L is listed under UL 248-1, UL 248-14.

What is 42NM-012L used for?

42NM-012L is listed for Electronic Circuit Protection applications. Verify suitability for your circuit before ordering.

What are the ordering terms for 42NM-012L?

42NM-012L: typical lead time 2–4 weeks. Submit a quote request for a firm quotation.

Hollyland

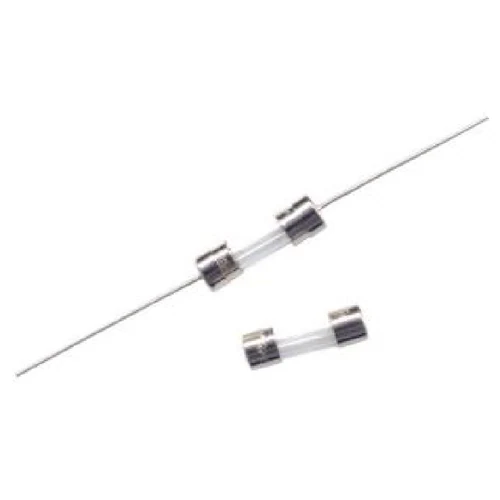

HOLLY FUSE 42NM-012L 125V AC 1.2A Fast-Blow Glass Fuse

Name: HOLLY FUSE 42NM-012L 125V AC 1.2A Fast-Blow Glass Fuse
Brand: Hollyland
SKU: 42NM-012L

Part Number: 42NM-012L

● Check availability

42NM-012L from HOLLY FUSE provides 1.2A, 125V AC circuit protection in the 41NM series.

Rated Current1.2A

Rated Voltage125V AC

Breaking Capacity500A at 125V AC

Package4.5×15mm

Tags

125V AC 4.5×15mm Cartridge / Clip fast acting (f)Glass Tube Fuses

For applications requiring 1.2A, 125V AC, HOLLY FUSE 42NM-012L provides the manufacturer-specified characteristics of the 41NM family. Interrupting capacity: 500A at 125V AC. Standards: UL 248-1, UL 248-14. Verified against catalogue p31.

Technical Specifications

Part Number: 42NM-012L
Manufacturer Part Number: 42NM-012L
Series: 41NM
Fuse Type: Glass Tube Fuse
Current Rating: 1.2A
Voltage Rating: 125V AC
AC / DC: AC
Breaking Capacity: 500A at 125V AC
Operating Temperature: -55°C to +125°C
Package / Dimensions: 4.5×15mm
Mounting: Cartridge / Clip
Application: Electronic Circuit Protection
Standard: UL 248-1 · UL 248-14
Terminal Type: Ferrule
Fuse Speed: Fast Acting
Reference Lead Time: 2–4 weeks
Rated current: 1.2A
Rated voltage: 125V AC
Fuse characteristic: Fast-Blow
Fuse construction: Glass Tube Fuse
Standards: UL 248-1, UL 248-14
Interrupting capacity: 500A at 125V AC
Manufacturer-listed approval authorities: UR/cUR, PSE and KC are listed by the manufacturer; exact approvals vary by rating and voltage.
Operating temperature: -55°C to +125°C
Source: Hollyland Current Fuse catalogue, printed page 31
