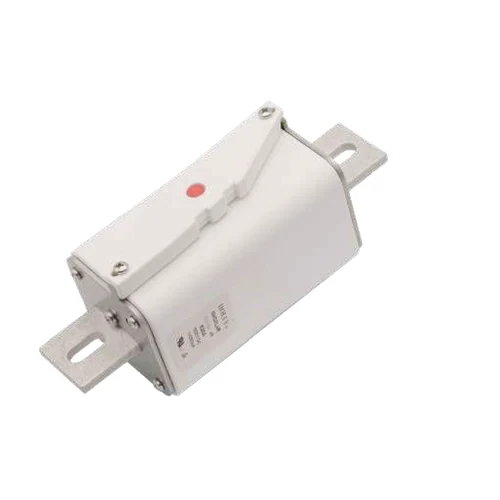

HOLLY FUSE 3XLaR630U15B 1500V DC 630A aR Fuse

Hollyland

HOLLY FUSE 3XLaR630U15B 1500V DC 630A aR Fuse

Part Number: 3XLaR630U15B

● Check availability

3XLaR630U15B from HOLLY FUSE provides 630A, 1500V DC protection for power-conversion and industrial electrical systems. Confirmed approvals: cURus, TUV.

Rated Current630A

Rated Voltage1500V DC

Breaking Capacity250,000A at 1500V DC

Tags

1500V DC aR Bolt-Down fuse Very Fast Acting

For applications requiring 630A, 1500V DC, HOLLY FUSE 3XLaR630U15B provides manufacturer-defined protection characteristics in the NH3XLaR series. Interrupting capacity: 250,000A at 1500V DC. Standards: UL 248-13, IEC 60269-4, GB/T 13539.4. Confirmed approvals: cURus, TUV. Verified against the Hollyland Powerfuse catalog, page 79.

Technical Specifications

Part Number: 3XLaR630U15B
Manufacturer Part Number: 3XLaR630U15B
Series: NH3XLaR
Fuse Type: Fuse
Current Rating: 630A
Voltage Rating: 1500V DC
AC / DC: DC
Breaking Capacity: 250,000A at 1500V DC
Mounting: Bolt-Down
Application: Power Electronics
Standard: GB/T 13539.4 · IEC 60269-4 · UL 248-13
Terminal Type: Ferrule
Fuse Speed: Very Fast Acting
Utilization Class: aR
Approvals: cURus · TUV
Certifications: cURus · TUV
Reference Lead Time: 2–4 weeks
Rated current: 630A
Rated voltage: 1500V DC
Interrupting capacity: 250,000A at 1500V DC
Class of operation: aR
Confirmed approvals: cURus, TUV
Standards: UL 248-13, IEC 60269-4, GB/T 13539.4
Source: Hollyland Powerfuse catalog, page 79
