What are the current and voltage ratings of 3XLaR350U15B?

3XLaR350U15B is rated 350A at 1500V DC.

What is the breaking capacity of 3XLaR350U15B?

3XLaR350U15B has a breaking capacity of 250,000A at 1500V DC. Confirm this covers the available fault current at the installation point.

Which standards and approvals apply to 3XLaR350U15B?

3XLaR350U15B is listed under GB/T 13539.4, IEC 60269-4, UL 248-13 / cURus.

What is 3XLaR350U15B used for?

3XLaR350U15B is listed for Power Electronics applications. Verify suitability for your circuit before ordering.

What are the ordering terms for 3XLaR350U15B?

3XLaR350U15B: typical lead time 2–4 weeks. Submit a quote request for a firm quotation.

Hollyland

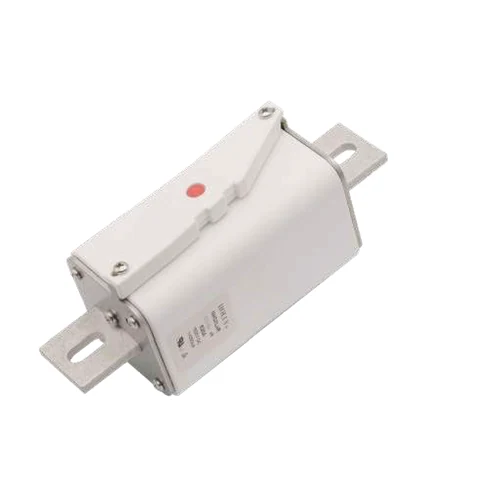

HOLLY FUSE 3XLaR350U15B 1500V DC 350A aR Fuse

Name: HOLLY FUSE 3XLaR350U15B 1500V DC 350A aR Fuse
Brand: Hollyland
SKU: 3XLaR350U15B

Part Number: 3XLaR350U15B

● Check availability

HOLLY FUSE 3XLaR350U15B is a aR semiconductor fuse rated 350A, 1500V DC, designed for high-current circuit protection. Confirmed approvals: cURus.

Rated Current350A

Rated Voltage1500V DC

Breaking Capacity250,000A at 1500V DC

Tags

1500V DC aR Bolt-Down fuse Very Fast Acting

HOLLY FUSE 3XLaR350U15B is a aR semiconductor fuse in the NH3XLaR series. Rated 350A, 1500V DC. Interrupting capacity: 250,000A at 1500V DC. Standards: UL 248-13, IEC 60269-4, GB/T 13539.4. Confirmed approvals: cURus. Source: Hollyland Powerfuse catalog, page 79.
