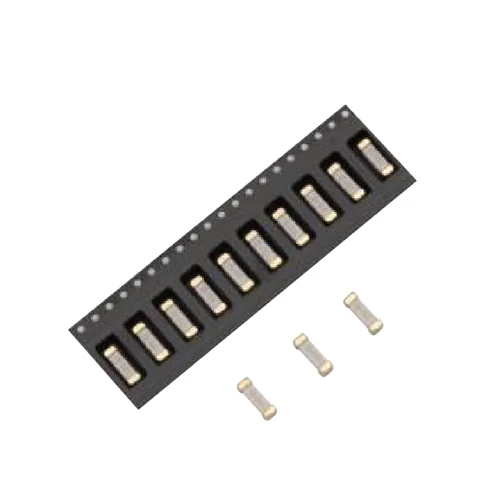

HOLLY FUSE 3NF-080L 125V DC 8A SMD Nano Fuse

Name: HOLLY FUSE 3NF-080L 125V DC 8A SMD Nano Fuse
Brand: Hollyland
SKU: 3NF-080L

Part Number: 3NF-080L

● Check availability

3NF-080L is a HOLLY FUSE smd nano fuse with verified ratings of 8A and 125V DC.

Rated Current8A

Rated Voltage125V DC

Breaking Capacity300A at 125V DC

Package1032

Tags

1032 125V DC 3NF fast acting SMD Nano Fuse

Technical data for HOLLY FUSE 3NF-080L includes 8A, 125V DC, fast acting operation and UL 248-1, UL 248-14 standards.

Series: 3NF
Rated current: 8A
Rated voltage: 125V DC
Fuse characteristic: Fast Acting
Standards: UL 248-1, UL 248-14
Interrupting capacity: 300A at 125V DC
Manufacturer-listed approval authorities: cURus, PSE. Availability varies by rating/voltage
verify the exact catalog row.
Operating temperature: -55°C to +125°C
Source: Hollyland Current Fuse p13

Technical Specifications

Part Number: 3NF-080L
Manufacturer Part Number: 3NF-080L
Series: 3NF
Fuse Type: SMD Nano Fuse
Current Rating: 8A
Voltage Rating: 125V DC
AC / DC: DC
Breaking Capacity: 300A at 125V DC
Operating Temperature: -55°C to +125°C
Package / Dimensions: 1032
Mounting: SMD
Application: PCB / Electronic Circuit Protection
Standard: UL 248-1 · UL 248-14
Terminal Type: SMD End Pad
Fuse Speed: Fast Acting
Rated current: 8A
Rated voltage: 125V DC
Fuse characteristic: Fast Acting
Standards: UL 248-1, UL 248-14
Interrupting capacity: 300A at 125V DC
Manufacturer-listed approval authorities: cURus, PSE. Availability varies by rating/voltage; verify the exact catalog row.
Operating temperature: -55°C to +125°C
Source: Hollyland Current Fuse p13
