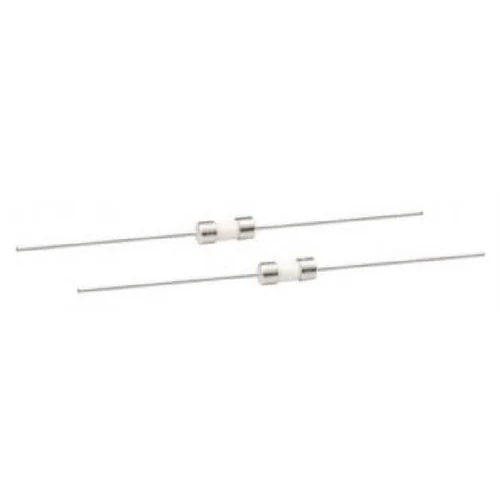

HOLLY FUSE 3CT080L 125V AC 8A Time-Lag Ceramic Microfuse
● Check availability3CT080L is part of the HOLLY FUSE 3CT range, specified at 8A, 125V AC. Confirmed approvals: cURus, TÜV.
Rated Current8A
Rated Voltage125V AC
Breaking Capacity63A at 125V AC
Package3.6×10mm
QUICK RFQ
Request a quote for 3CT080L
Submit directly from this product page. We will reply with availability, lead time and pricing.
Part Number3CT080LBrandHollylandRequested Qty100
Designed for circuit protection, HOLLY FUSE 3CT080L is specified at 8A, 125V AC within the 3CT series. Interrupting capacity: 63A at 125V AC. Confirmed approvals: cURus, TÜV. Standards: IEC 60127. Source: Hollyland Current Fuse catalogue p30.
Technical Specifications
- Part Number
- 3CT080L
- Manufacturer Part Number
- 3CT080L
- Series
- 3CT
- Fuse Type
- Ceramic Tube Microfuse
- Current Rating
- 8A
- Voltage Rating
- 125V AC
- AC / DC
- AC
- Breaking Capacity
- 63A at 125V AC
- Operating Temperature
- -55°C to +125°C
- Package / Dimensions
- 3.6×10mm
- Mounting
- Cartridge / Clip
- Application
- Electronic Circuit Protection
- Standard
- IEC 60127
- Terminal Type
- Ferrule
- Fuse Speed
- Time Delay
- Approvals
- cURus · TUV
- Certifications
- cURus · TÜV
- Reference Lead Time
- 2–4 weeks
- Rated current
- 8A
- Rated voltage
- 125V AC
- Fuse characteristic
- Time-Lag
- Fuse construction
- Ceramic Tube Microfuse
- Interrupting capacity
- 63A at 125V AC
- Standards
- IEC 60127
- Confirmed approvals used in structured fields
- cURus, TÜV
- Manufacturer approval note
- cURus and TÜV are listed for the 1A-10A family.
- Source
- Hollyland Current Fuse catalogue, printed page 30
