Hollyland

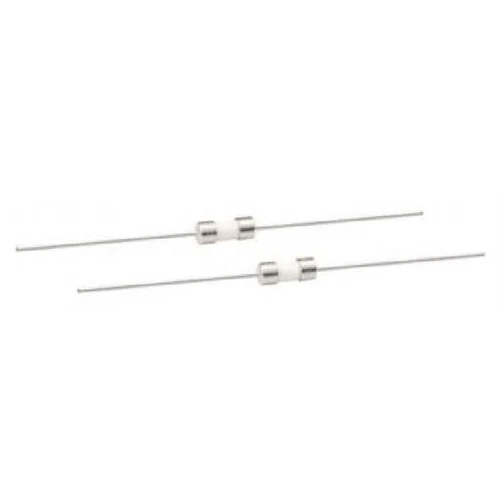

HOLLY FUSE 3CT040H 250V AC 4A Time-Lag Ceramic Microfuse

Name: HOLLY FUSE 3CT040H 250V AC 4A Time-Lag Ceramic Microfuse
Brand: Hollyland
SKU: 3CT040H

Part Number: 3CT040H

● Check availability

3CT040H is part of the HOLLY FUSE 3CT range, specified at 4A, 250V AC. Confirmed approvals: cURus, TÜV.

Rated Current4A

Rated Voltage250V AC

Breaking Capacity63A at 250V AC

Package3.6×10mm

Tags

250V AC 3.6×10mm 3CT Ceramic Tube Microfuse Time-Lag

Designed for circuit protection, HOLLY FUSE 3CT040H is specified at 4A, 250V AC within the 3CT series. Interrupting capacity: 63A at 250V AC. Confirmed approvals: cURus, TÜV. Standards: IEC 60127. Source: Hollyland Current Fuse catalogue p30.

Technical Specifications

Part Number: 3CT040H
Manufacturer Part Number: 3CT040H
Series: 3CT
Fuse Type: Ceramic Tube Microfuse
Current Rating: 4A
Voltage Rating: 250V AC
AC / DC: AC
Breaking Capacity: 63A at 250V AC
Operating Temperature: -55°C to +125°C
Package / Dimensions: 3.6×10mm
Mounting: Cartridge / Clip
Application: Electronic Circuit Protection
Standard: IEC 60127
Terminal Type: Ferrule
Fuse Speed: Time Delay
Approvals: cURus · TUV
Certifications: cURus · TÜV
Reference Lead Time: 2–4 weeks
Rated current: 4A
Rated voltage: 250V AC
Fuse characteristic: Time-Lag
Fuse construction: Ceramic Tube Microfuse
Interrupting capacity: 63A at 250V AC
Standards: IEC 60127
Confirmed approvals used in structured fields: cURus, TÜV
Manufacturer approval note: cURus and TÜV are listed for the 1A-10A family.
Source: Hollyland Current Fuse catalogue, printed page 30
