What are the current and voltage ratings of 35NM-063H?

35NM-063H is rated 6.3A at 250V AC.

What is the breaking capacity of 35NM-063H?

35NM-063H has a breaking capacity of 50A at 250V AC. Confirm this covers the available fault current at the installation point.

What package size does 35NM-063H use?

35NM-063H uses 3.6×10mm package size.

Which standards and approvals apply to 35NM-063H?

35NM-063H is listed under UL 248-1, UL 248-14 / UL · cUL.

What is 35NM-063H used for?

35NM-063H is listed for Electronic Circuit Protection applications. Verify suitability for your circuit before ordering.

What are the ordering terms for 35NM-063H?

35NM-063H: typical lead time 2–4 weeks. Submit a quote request for a firm quotation.

Hollyland

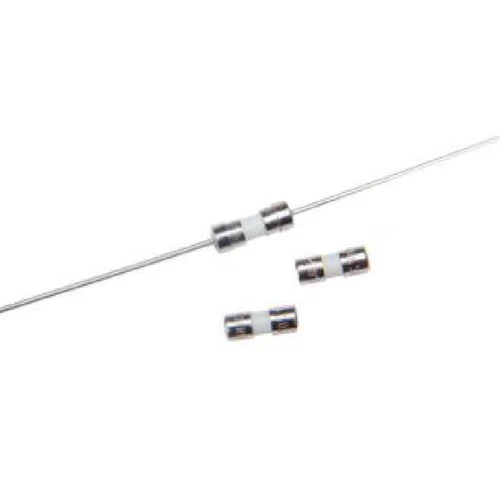

HOLLY FUSE 35NM-063H 250V AC 6.3A Fast-Blow Ceramic Microfuse

Name: HOLLY FUSE 35NM-063H 250V AC 6.3A Fast-Blow Ceramic Microfuse
Brand: Hollyland
SKU: 35NM-063H

Part Number: 35NM-063H

● Check availability

Technical listing for 35NM-063H: 6.3A, 250V AC fast-blow ceramic microfuse with manufacturer-verified operating characteristics. Confirmed common approvals: UL, cUL.

Rated Current6.3A

Rated Voltage250V AC

Breaking Capacity50A at 250V AC

Package3.6×10mm

Tags

The 35NM-063H fuse is listed by HOLLY FUSE for 6.3A, 250V AC. It belongs to the 35NM family and uses a fast-blow characteristic. Interrupting capacity: 50A at 250V AC. Confirmed common approvals: UL, cUL. Manufacturer source: Current Fuse catalogue p29.

Technical Specifications

Part Number: 35NM-063H
Manufacturer Part Number: 35NM-063H
Series: 35NM
Fuse Type: Ceramic Tube Microfuse
Current Rating: 6.3A
Voltage Rating: 250V AC
AC / DC: AC
Breaking Capacity: 50A at 250V AC
Operating Temperature: -55°C to +125°C
Package / Dimensions: 3.6×10mm
Mounting: Cartridge / Clip
Application: Electronic Circuit Protection
Standard: UL 248-1 · UL 248-14
Terminal Type: Ferrule
Fuse Speed: Fast Acting
Approvals: cULus · UL
Certifications: UL · cUL
Reference Lead Time: 2–4 weeks
Rated current: 6.3A
Rated voltage: 250V AC
Fuse characteristic: Fast-Blow
Fuse construction: Ceramic Tube Microfuse
Standards: UL 248-1, UL 248-14
Interrupting capacity: 50A at 250V AC
Manufacturer-listed approval authorities: UL, cUL, CSA and PSE are listed by the manufacturer; exact approvals vary by rating/voltage.
Operating temperature: -55°C to +125°C
Source: Hollyland Current Fuse catalogue, printed page 29
