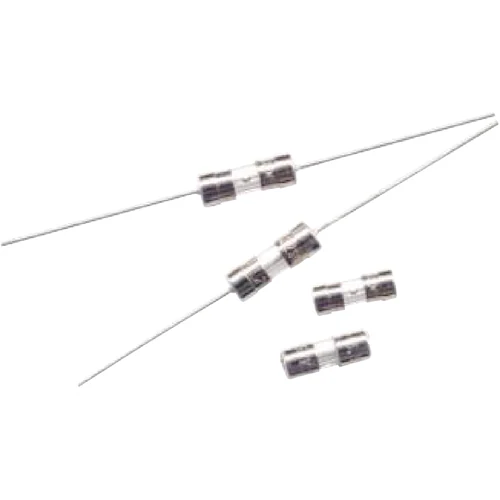

HOLLY FUSE 32S-063H 250V AC 6.3A Slow-Blow Glass Microfuse

Name: HOLLY FUSE 32S-063H 250V AC 6.3A Slow-Blow Glass Microfuse
Brand: Hollyland
SKU: 32S-063H

Part Number: 32S-063H

● Check availability

HOLLY FUSE 32S-063H is a slow-blow glass microfuse in the 31S family, rated 6.3A, 250V AC. Confirmed common approvals: UL, cUL.

Rated Current6.3A

Rated Voltage250V AC

Breaking Capacity50A at 250V AC

Package3.6×10mm

Tags

250V AC 3.6×10mm Cartridge / Clip Glass Tube Fuses Time-Lag (T)

HOLLY FUSE 32S-063H is a slow-blow glass microfuse in the 31S series, rated 6.3A, 250V AC. Interrupting capacity: 50A at 250V AC. Standards: UL 248-1, UL 248-14. Confirmed common approvals: UL, cUL. Source: Hollyland Current Fuse catalogue p27.

Technical Specifications

Part Number: 32S-063H
Manufacturer Part Number: 32S-063H
Series: 31S
Fuse Type: Glass Tube Microfuse
Current Rating: 6.3A
Voltage Rating: 250V AC
AC / DC: AC
Breaking Capacity: 50A at 250V AC
Operating Temperature: -55°C to +125°C
Package / Dimensions: 3.6×10mm
Mounting: Cartridge / Clip
Application: Electronic Circuit Protection
Standard: UL 248-1 · UL 248-14
Terminal Type: Ferrule
Fuse Speed: Time Delay
Approvals: cULus · UL
Certifications: UL · cUL
Reference Lead Time: 2–4 weeks
Rated current: 6.3A
Rated voltage: 250V AC
Fuse characteristic: Slow-Blow
Fuse construction: Glass Tube Microfuse
Standards: UL 248-1, UL 248-14
Interrupting capacity: 50A at 250V AC
Manufacturer-listed approval authorities: UL/cUL and CSA are listed by the manufacturer; exact approvals vary by rating/voltage.
Operating temperature: -55°C to +125°C
Source: Hollyland Current Fuse catalogue, printed page 27
