What are the current and voltage ratings of 32S-050L?

32S-050L is rated 5A at 125V AC.

What is the breaking capacity of 32S-050L?

32S-050L has a breaking capacity of 50A at 125V AC. Confirm this covers the available fault current at the installation point.

What package size does 32S-050L use?

32S-050L uses 3.6×10mm package size.

Which standards and approvals apply to 32S-050L?

32S-050L is listed under UL 248-1, UL 248-14 / UL · cUL.

What is 32S-050L used for?

32S-050L is listed for Electronic Circuit Protection applications. Verify suitability for your circuit before ordering.

What are the ordering terms for 32S-050L?

32S-050L: typical lead time 2–4 weeks. Submit a quote request for a firm quotation.

Hollyland

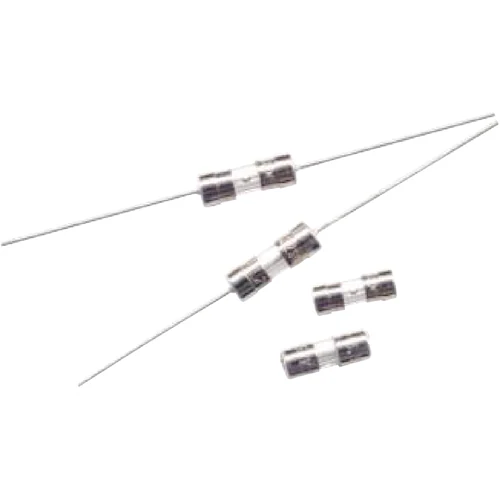

HOLLY FUSE 32S-050L 125V AC 5A Slow-Blow Glass Microfuse

Name: HOLLY FUSE 32S-050L 125V AC 5A Slow-Blow Glass Microfuse
Brand: Hollyland
SKU: 32S-050L

Part Number: 32S-050L

● Check availability

HOLLY FUSE 32S-050L is a slow-blow glass microfuse in the 31S family, rated 5A, 125V AC. Confirmed common approvals: UL, cUL.

Rated Current5A

Rated Voltage125V AC

Breaking Capacity50A at 125V AC

Package3.6×10mm

Tags

HOLLY FUSE 32S-050L is a slow-blow glass microfuse in the 31S series, rated 5A, 125V AC. Interrupting capacity: 50A at 125V AC. Standards: UL 248-1, UL 248-14. Confirmed common approvals: UL, cUL. Source: Hollyland Current Fuse catalogue p27.

Technical Specifications

Part Number: 32S-050L
Manufacturer Part Number: 32S-050L
Series: 31S
Fuse Type: Glass Tube Microfuse
Current Rating: 5A
Voltage Rating: 125V AC
AC / DC: AC
Breaking Capacity: 50A at 125V AC
Operating Temperature: -55°C to +125°C
Package / Dimensions: 3.6×10mm
Mounting: Cartridge / Clip
Application: Electronic Circuit Protection
Standard: UL 248-1 · UL 248-14
Terminal Type: Ferrule
Fuse Speed: Time Delay
Approvals: cULus · UL
Certifications: UL · cUL
Reference Lead Time: 2–4 weeks
Rated current: 5A
Rated voltage: 125V AC
Fuse characteristic: Slow-Blow
Fuse construction: Glass Tube Microfuse
Standards: UL 248-1, UL 248-14
Interrupting capacity: 50A at 125V AC
Manufacturer-listed approval authorities: UL/cUL and CSA are listed by the manufacturer; exact approvals vary by rating/voltage.
Operating temperature: -55°C to +125°C
Source: Hollyland Current Fuse catalogue, printed page 27
