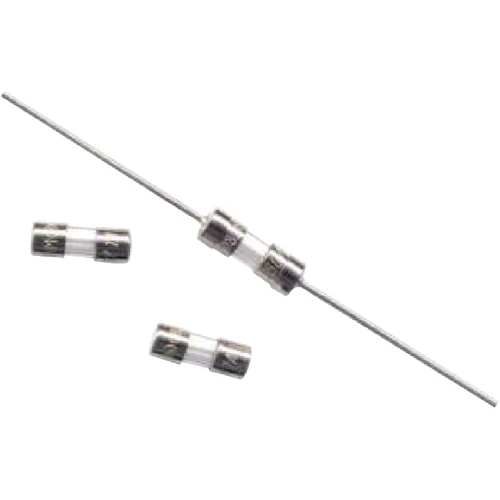

HOLLY FUSE 32NM-120H 250V AC 12A Fast-Blow Glass Microfuse

Name: HOLLY FUSE 32NM-120H 250V AC 12A Fast-Blow Glass Microfuse
Brand: Hollyland
SKU: 32NM-120H

Part Number: 32NM-120H

● Check availability

Verified HOLLY FUSE 32NM-120H data includes 12A, 250V AC, fast-blow operation and UL 248-1, UL 248-14 standards.

Rated Current12A

Rated Voltage250V AC

Breaking Capacity50A at 250V AC

Package3.6×10mm

Tags

250V AC 3.6×10mm Cartridge / Clip fast acting (f)Glass Tube Fuses

HOLLY FUSE 32NM-120H belongs to the 31NM product family. Key verified data: 12A, 250V AC; characteristic: Fast-Blow. Interrupting capacity: 50A at 250V AC. Confirmed common approvals: UL, cUL. Reference: manufacturer catalogue p26.

Technical Specifications

Part Number: 32NM-120H
Manufacturer Part Number: 32NM-120H
Series: 31NM
Fuse Type: Glass Tube Microfuse
Current Rating: 12A
Voltage Rating: 250V AC
AC / DC: AC
Breaking Capacity: 50A at 250V AC
Operating Temperature: -55°C to +125°C
Package / Dimensions: 3.6×10mm
Mounting: Cartridge / Clip
Application: Electronic Circuit Protection
Standard: UL 248-1 · UL 248-14
Terminal Type: Ferrule
Fuse Speed: Fast Acting
Approvals: cULus · UL
Certifications: UL · cUL
Reference Lead Time: 2–4 weeks
Rated current: 12A
Rated voltage: 250V AC
Fuse characteristic: Fast-Blow
Fuse construction: Glass Tube Microfuse
Standards: UL 248-1, UL 248-14
Interrupting capacity: 50A at 250V AC
Manufacturer-listed approval authorities: UL, cUL and CSA are listed by the manufacturer; exact approvals vary by rating/voltage.
Operating temperature: -55°C to +125°C
Source: Hollyland Current Fuse catalogue, printed page 26
