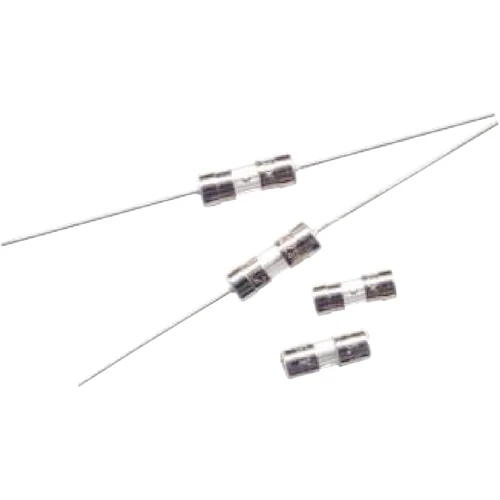

HOLLY FUSE 31S-0600L 125V AC 600mA Slow-Blow Glass Microfuse

Name: HOLLY FUSE 31S-0600L 125V AC 600mA Slow-Blow Glass Microfuse
Brand: Hollyland
SKU: 31S-0600L

Part Number: 31S-0600L

● Check availability

31S-0600L is part of the HOLLY FUSE 31S range, specified at 600mA, 125V AC with a slow-blow characteristic. Confirmed common approvals: UL, cUL.

Rated Current600mA

Rated Voltage125V AC

Breaking Capacity50A at 125V AC

Package3.6×10mm

Tags

125V AC 3.6×10mm Cartridge / Clip Glass Tube Fuses Time-Lag (T)

Designed for electronic circuit protection, HOLLY FUSE 31S-0600L is specified at 600mA, 125V AC within the 31S series. Interrupting capacity: 50A at 125V AC. Confirmed common approvals: UL, cUL. Source: Hollyland Current Fuse catalogue p27.

Technical Specifications

Part Number: 31S-0600L
Manufacturer Part Number: 31S-0600L
Series: 31S
Fuse Type: Glass Tube Microfuse
Current Rating: 600mA
Voltage Rating: 125V AC
AC / DC: AC
Breaking Capacity: 50A at 125V AC
Operating Temperature: -55°C to +125°C
Package / Dimensions: 3.6×10mm
Mounting: Cartridge / Clip
Application: Electronic Circuit Protection
Standard: UL 248-1 · UL 248-14
Terminal Type: Ferrule
Fuse Speed: Time Delay
Approvals: cULus · UL
Certifications: UL · cUL
Reference Lead Time: 2–4 weeks
Rated current: 600mA
Rated voltage: 125V AC
Fuse characteristic: Slow-Blow
Fuse construction: Glass Tube Microfuse
Standards: UL 248-1, UL 248-14
Interrupting capacity: 50A at 125V AC
Manufacturer-listed approval authorities: UL/cUL and CSA are listed by the manufacturer; exact approvals vary by rating/voltage.
Operating temperature: -55°C to +125°C
Source: Hollyland Current Fuse catalogue, printed page 27
