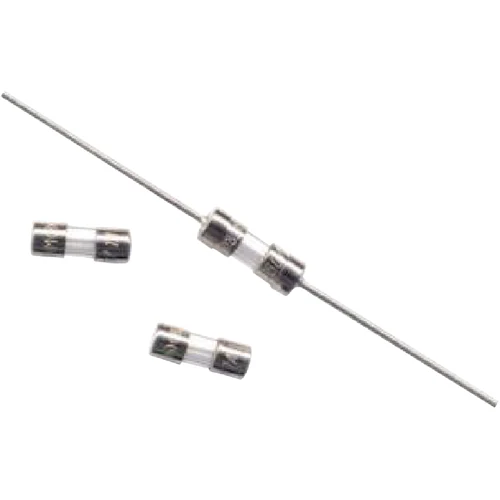

HOLLY FUSE 31NM-050H 250V AC 5A Fast-Blow Glass Microfuse

Name: HOLLY FUSE 31NM-050H 250V AC 5A Fast-Blow Glass Microfuse
Brand: Hollyland
SKU: 31NM-050H

Part Number: 31NM-050H

● Check availability

HOLLY FUSE 31NM-050H combines a 5A current rating with 250V AC operation for electronic circuit protection. Confirmed common approvals: UL, cUL.

Rated Current5A

Rated Voltage250V AC

Breaking Capacity50A at 250V AC

Package3.6×10mm

Tags

250V AC 3.6×10mm Cartridge / Clip fast acting (f)Glass Tube Fuses

Part 31NM-050H is a HOLLY FUSE 31NM-series fast-blow glass microfuse with ratings of 5A, 250V AC. Confirmed common approvals: UL, cUL. Interrupting capacity: 50A at 250V AC. Technical data checked against manufacturer catalogue p26.

Technical Specifications

Part Number: 31NM-050H
Manufacturer Part Number: 31NM-050H
Series: 31NM
Fuse Type: Glass Tube Microfuse
Current Rating: 5A
Voltage Rating: 250V AC
AC / DC: AC
Breaking Capacity: 50A at 250V AC
Operating Temperature: -55°C to +125°C
Package / Dimensions: 3.6×10mm
Mounting: Cartridge / Clip
Application: Electronic Circuit Protection
Standard: UL 248-1 · UL 248-14
Terminal Type: Ferrule
Fuse Speed: Fast Acting
Approvals: cULus · UL
Certifications: UL · cUL
Reference Lead Time: 2–4 weeks
Rated current: 5A
Rated voltage: 250V AC
Fuse characteristic: Fast-Blow
Fuse construction: Glass Tube Microfuse
Standards: UL 248-1, UL 248-14
Interrupting capacity: 50A at 250V AC
Manufacturer-listed approval authorities: UL, cUL and CSA are listed by the manufacturer; exact approvals vary by rating/voltage.
Operating temperature: -55°C to +125°C
Source: Hollyland Current Fuse catalogue, printed page 26
