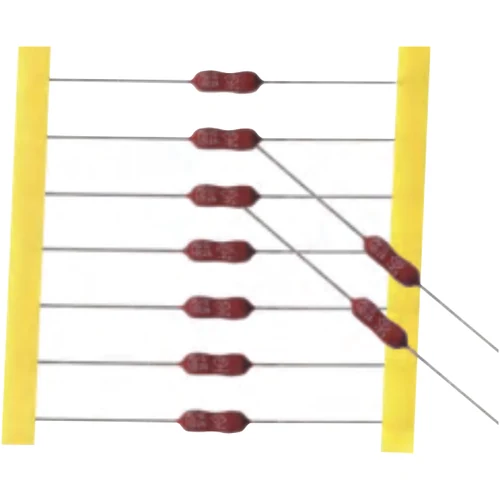

HOLLY FUSE 30TS-0600L 125V AC 600mA Slow-Blow Microfuse

Name: HOLLY FUSE 30TS-0600L 125V AC 600mA Slow-Blow Microfuse
Brand: Hollyland
SKU: 30TS-0600L

Part Number: 30TS-0600L

● Check availability

30TS-0600L from HOLLY FUSE provides 600mA, 125V AC circuit protection in the 30TS series.

Rated Current600mA

Rated Voltage125V AC

Breaking Capacity50A at 125V AC

Package3.6×10mm

Tags

125V AC 3.6×10mm Cartridge / Clip Subminiature Fuses Time-Lag (T)

For applications requiring 600mA, 125V AC, HOLLY FUSE 30TS-0600L provides the manufacturer-specified characteristics of the 30TS family. Interrupting capacity: 50A at 125V AC. Standards: UL 248-1, UL 248-14. Verified against catalogue p25.

Technical Specifications

Part Number: 30TS-0600L
Manufacturer Part Number: 30TS-0600L
Series: 30TS
Fuse Type: Microfuse
Current Rating: 600mA
Voltage Rating: 125V AC
AC / DC: AC
Breaking Capacity: 50A at 125V AC
I²t: 0.4782 A²s
Pre-arcing I²t: 0.4782
Total I²t: 0.4782
Operating Temperature: -55°C to +125°C
Package / Dimensions: 3.6×10mm
Mounting: Cartridge / Clip
Application: Electronic Circuit Protection
Standard: UL 248-1 · UL 248-14
Terminal Type: Radial Lead
Fuse Speed: Time Delay
Reference Lead Time: 2–4 weeks
Rated current: 600mA
Rated voltage: 125V AC
Fuse characteristic: Slow-Blow
Fuse construction: Microfuse
Standards: UL 248-1, UL 248-14
Interrupting capacity: 50A at 125V AC
Manufacturer-listed approval authorities: CCC, VDE, UL/cUL, UR/cUR, CSA and PSE are listed by the manufacturer; exact approvals vary by rating and voltage.
Operating temperature: -55°C to +125°C
Source: Hollyland Current Fuse catalogue, printed page 25
