What are the current and voltage ratings of 30TS-0350H1?

30TS-0350H1 is rated 350mA at 350V AC.

What is the breaking capacity of 30TS-0350H1?

30TS-0350H1 has a breaking capacity of 30A at 350V AC. Confirm this covers the available fault current at the installation point.

What package size does 30TS-0350H1 use?

30TS-0350H1 uses 3.6×10mm package size.

Which standards and approvals apply to 30TS-0350H1?

30TS-0350H1 is listed under UL 248-1, UL 248-14.

What is 30TS-0350H1 used for?

30TS-0350H1 is listed for Electronic Circuit Protection applications. Verify suitability for your circuit before ordering.

What are the ordering terms for 30TS-0350H1?

30TS-0350H1: typical lead time 2–4 weeks. Submit a quote request for a firm quotation.

Hollyland

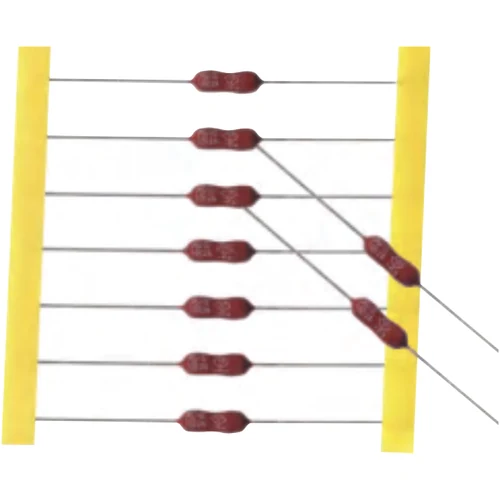

HOLLY FUSE 30TS-0350H1 350V AC 350mA Slow-Blow Microfuse

Name: HOLLY FUSE 30TS-0350H1 350V AC 350mA Slow-Blow Microfuse
Brand: Hollyland
SKU: 30TS-0350H1

Part Number: 30TS-0350H1

● Check availability

Manufacturer-checked specifications for HOLLY FUSE 30TS-0350H1: 350mA, 350V AC. Interrupting capacity: 30A at 350V AC.

Rated Current350mA

Rated Voltage350V AC

Breaking Capacity30A at 350V AC

Package3.6×10mm

Tags

HOLLY FUSE 30TS-0350H1: slow-blow microfuse, 350mA, 350V AC. Interrupting capacity: 30A at 350V AC. Applicable standards: UL 248-1, UL 248-14. Source: Current Fuse catalogue p25.

Specifications

Series: 30TS
Rated current: 350mA
Rated voltage: 350V AC
Fuse characteristic: Slow-Blow
Fuse construction: Microfuse
Standards: UL 248-1, UL 248-14
Interrupting capacity: 30A at 350V AC
Manufacturer-listed approval authorities: CCC, VDE, UL/cUL, UR/cUR, CSA and PSE are listed by the manufacturer
exact approvals vary by rating and voltage.
Operating temperature: -55°C to +125°C
Source: Hollyland Current Fuse catalogue, printed page 25

Technical Specifications

Part Number: 30TS-0350H1
Manufacturer Part Number: 30TS-0350H1
Series: 30TS
Fuse Type: Microfuse
Current Rating: 350mA
Voltage Rating: 350V AC
AC / DC: AC
Breaking Capacity: 30A at 350V AC
I²t: 0.1118 A²s
Pre-arcing I²t: 0.1118
Total I²t: 0.1118
Operating Temperature: -55°C to +125°C
Package / Dimensions: 3.6×10mm
Mounting: Cartridge / Clip
Application: Electronic Circuit Protection
Standard: UL 248-1 · UL 248-14
Terminal Type: Radial Lead
Fuse Speed: Time Delay
Reference Lead Time: 2–4 weeks
Rated current: 350mA
Rated voltage: 350V AC
Fuse characteristic: Slow-Blow
Fuse construction: Microfuse
Standards: UL 248-1, UL 248-14
Interrupting capacity: 30A at 350V AC
Manufacturer-listed approval authorities: CCC, VDE, UL/cUL, UR/cUR, CSA and PSE are listed by the manufacturer; exact approvals vary by rating and voltage.
Operating temperature: -55°C to +125°C
Source: Hollyland Current Fuse catalogue, printed page 25
