What are the current and voltage ratings of 30T-063H?

30T-063H is rated 6.3A at 250V AC.

What is the breaking capacity of 30T-063H?

30T-063H has a breaking capacity of 63A at 250V AC (35A or 10×In, whichever is greater). Confirm this covers the available fault current at the installation point.

What package size does 30T-063H use?

30T-063H uses 3.6×10mm package size.

Which standards and approvals apply to 30T-063H?

30T-063H is listed under GB 9364, IEC 60127.

What is 30T-063H used for?

30T-063H is listed for Electronic Circuit Protection applications. Verify suitability for your circuit before ordering.

What are the ordering terms for 30T-063H?

30T-063H: typical lead time 2–4 weeks. Submit a quote request for a firm quotation.

Hollyland

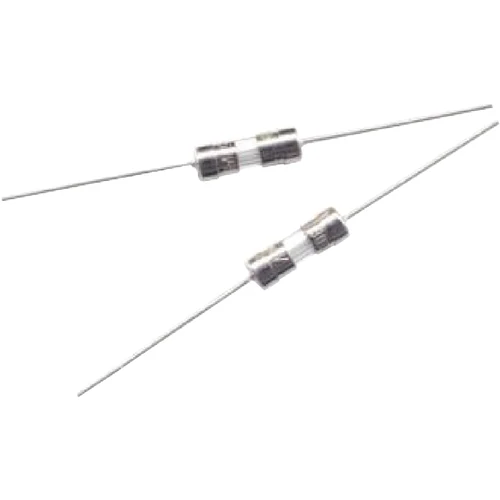

HOLLY FUSE 30T-063H 250V AC 6.3A Time-Lag Glass Microfuse

Name: HOLLY FUSE 30T-063H 250V AC 6.3A Time-Lag Glass Microfuse
Brand: Hollyland
SKU: 30T-063H

Part Number: 30T-063H

● Check availability

Verified HOLLY FUSE 30T-063H data includes 6.3A, 250V AC, time-lag operation and IEC 60127, GB 9364 standards.

Rated Current6.3A

Rated Voltage250V AC

Breaking Capacity63A at 250V AC (35A or 10×In, whichever is greater)

Package3.6×10mm

Tags

HOLLY FUSE 30T-063H belongs to the 30T product family. Key verified data: 6.3A, 250V AC; characteristic: Time-Lag. Interrupting capacity: 63A at 250V AC (35A or 10×In, whichever is greater). Reference: manufacturer catalogue p28.

Technical Specifications

Part Number: 30T-063H
Manufacturer Part Number: 30T-063H
Series: 30T
Fuse Type: Glass Tube Microfuse
Current Rating: 6.3A
Voltage Rating: 250V AC
AC / DC: AC
Breaking Capacity: 63A at 250V AC (35A or 10×In, whichever is greater)
Operating Temperature: -55°C to +125°C
Package / Dimensions: 3.6×10mm
Mounting: Cartridge / Clip
Application: Electronic Circuit Protection
Standard: GB 9364 · IEC 60127
Terminal Type: Ferrule
Fuse Speed: Time Delay
Reference Lead Time: 2–4 weeks
Rated current: 6.3A
Rated voltage: 250V AC
Fuse characteristic: Time-Lag
Fuse construction: Glass Tube Microfuse
Standards: IEC 60127, GB 9364
Interrupting capacity: 63A at 250V AC (35A or 10×In, whichever is greater)
Manufacturer-listed approval authorities: CCC, VDE, cURus and PSE are listed by the manufacturer; exact approvals vary by current rating.
Operating temperature: -55°C to +125°C
Source: Hollyland Current Fuse catalogue, printed page 28
