Hollyland

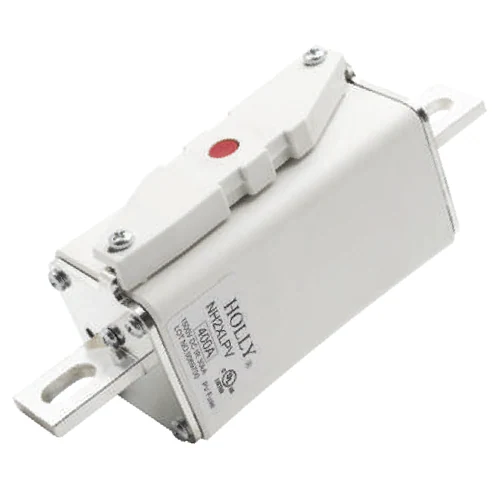

HOLLY FUSE 2XLPV400U15B 1500V 400A Photovoltaic Fuse

Name: HOLLY FUSE 2XLPV400U15B 1500V 400A Photovoltaic Fuse
Brand: Hollyland
SKU: 2XLPV400U15B

Part Number: 2XLPV400U15B

● LT: 2-4w

Technical listing for HOLLY FUSE 2XLPV400U15B, a photovoltaic fuse with 400A, 1500V and UL Listed approval.

Rated Current400A

Rated Voltage1500V

Breaking Capacity30000A at 1500V DC

Tags

1500V DC Bolt-Down gPV Photovoltaic Fuses Very Fast Acting

HOLLY FUSE part 2XLPV400U15B is listed as a photovoltaic fuse with 400A, 1500V under the NH2XLPV series. Standards: UL 248. Approvals: UL Listed. Interrupting/breaking capacity: 30000A at 1500V DC.

Specifications

Type: Photovoltaic Fuses
Rated current type: DC
Standards also cited: UL 248-19
Source: powerfuse catalogue page 42

Technical Specifications

Part Number: 2XLPV400U15B
Manufacturer Part Number: 2XLPV400U15B
Series: NH2XLPV
Fuse Type: Photovoltaic Fuses
Current Rating: 400A
Voltage Rating: 1500V
AC / DC: DC
Breaking Capacity: 30000A at 1500V DC
Mounting: Bolt-Down
Application: Solar PV
Standard: UL 248
Terminal Type: Ferrule
Fuse Speed: Very Fast Acting
Utilization Class: gPV
Approvals: UL Listed
Certifications: UL Listed
Type: Photovoltaic Fuses; Rated current type: DC; Standards also cited: UL 248-19; Source: powerfuse catalogue page 42
