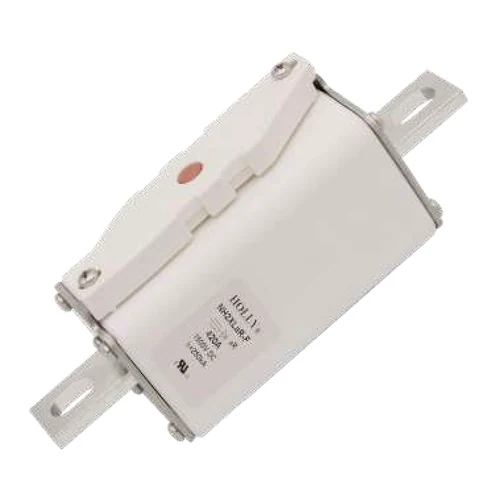

HOLLY FUSE 2XLaRF200U15 1500V DC 200A aR Fuse

Hollyland

HOLLY FUSE 2XLaRF200U15 1500V DC 200A aR Fuse

Part Number: 2XLaRF200U15

● Check availability

2XLaRF200U15 from HOLLY FUSE provides 200A, 1500V DC protection for power-conversion and industrial electrical systems. Confirmed approvals: cURus.

Rated Current200A

Rated Voltage1500V DC

Breaking Capacity150,000A at 1500V DC

Tags

1500V DC aR Bolt-Down fuse Very Fast Acting

For applications requiring 200A, 1500V DC, HOLLY FUSE 2XLaRF200U15 provides manufacturer-defined protection characteristics in the NH2XLaR-F series. Interrupting capacity: 150,000A at 1500V DC. Standards: UL 248-13, IEC 60269-4, GB/T 13539.4. Confirmed approvals: cURus. Verified against the Hollyland Powerfuse catalog, page 78.

Technical Specifications

Part Number: 2XLaRF200U15
Manufacturer Part Number: 2XLaRF200U15
Series: NH2XLaR-F
Fuse Type: Fuse
Current Rating: 200A
Voltage Rating: 1500V DC
AC / DC: DC
Breaking Capacity: 150,000A at 1500V DC
Mounting: Bolt-Down
Application: Power Electronics
Standard: GB/T 13539.4 · IEC 60269-4 · UL 248-13
Terminal Type: Ferrule
Fuse Speed: Very Fast Acting
Utilization Class: aR
Approvals: cURus
Certifications: cURus
Reference Lead Time: 2–4 weeks
Rated current: 200A
Rated voltage: 1500V DC
Interrupting capacity: 150,000A at 1500V DC
Class of operation: aR
Confirmed approvals: cURus
Standards: UL 248-13, IEC 60269-4, GB/T 13539.4
Source: Hollyland Powerfuse catalog, page 78
