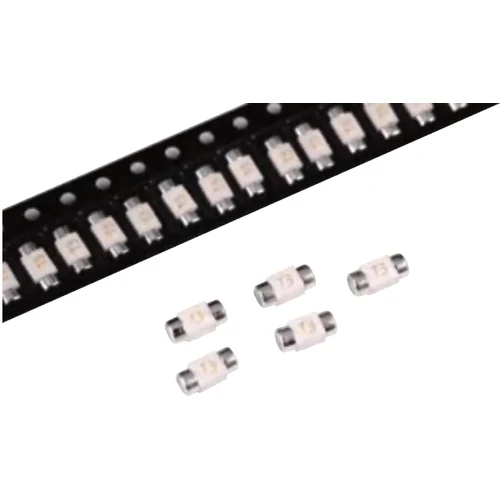

HOLLY FUSE 25T-040L 125V AC/DC 4A SMD Nano Fuse

Name: HOLLY FUSE 25T-040L 125V AC/DC 4A SMD Nano Fuse
Brand: Hollyland
SKU: 25T-040L

Part Number: 25T-040L

● Check availability

25T-040L from HOLLY FUSE provides 4A protection at 125V AC/DC in the 25T family.

Rated Current4A

Rated Voltage125V AC/DC

Breaking Capacity50A at 250V AC / 100A at 125V AC/DC

Package2410

Tags

125V AC/DC 2410 25T Slow-Blow / Time-Lag SMD Nano Fuse

For circuit designs using the 25T family, part 25T-040L provides a 4A rating at 125V AC/DC. It follows UL 248-1, UL 248-14. Source: Hollyland Current Fuse p12.

Specifications

Series: 25T
Rated current: 4A
Rated voltage: 125V AC/DC
Fuse characteristic: Slow-Blow / Time-Lag
Standards: UL 248-1, UL 248-14
Interrupting capacity: 50A at 250V AC / 100A at 125V AC/DC
Manufacturer-listed approval authorities: UR/cUR. Availability varies by rating/voltage
verify the exact catalog row.
Operating temperature: -55°C to +125°C
Source: Hollyland Current Fuse p12

Technical Specifications

Part Number: 25T-040L
Manufacturer Part Number: 25T-040L
Series: 25T
Fuse Type: SMD Nano Fuse
Current Rating: 4A
Voltage Rating: 125V AC/DC
AC / DC: AC/DC
Breaking Capacity: 50A at 250V AC / 100A at 125V AC/DC
I²t: 24.22 A²s
Pre-arcing I²t: 24.22
Total I²t: 24.22
Operating Temperature: -55°C to +125°C
Package / Dimensions: 2410
Mounting: SMD
Application: PCB / Electronic Circuit Protection
Standard: UL 248-1 · UL 248-14
Terminal Type: SMD End Pad
Fuse Speed: Time Delay
Rated current: 4A
Rated voltage: 125V AC/DC
Fuse characteristic: Slow-Blow / Time-Lag
Standards: UL 248-1, UL 248-14
Interrupting capacity: 50A at 250V AC / 100A at 125V AC/DC
Manufacturer-listed approval authorities: UR/cUR. Availability varies by rating/voltage; verify the exact catalog row.
Operating temperature: -55°C to +125°C
Source: Hollyland Current Fuse p12
