Hollyland

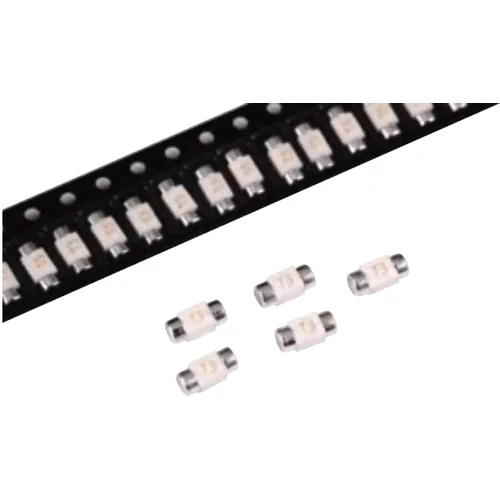

HOLLY FUSE 25T-030H 250V AC 3A SMD Nano Fuse

Name: HOLLY FUSE 25T-030H 250V AC 3A SMD Nano Fuse
Brand: Hollyland
SKU: 25T-030H

Part Number: 25T-030H

● Check availability

Technical listing for HOLLY FUSE 25T-030H: 3A, 250V AC, standards UL 248-1, UL 248-14.

Rated Current3A

Rated Voltage250V AC

Breaking Capacity50A at 250V AC / 100A at 125V AC/DC

Package2410

Tags

2410 250V AC 25T Slow-Blow / Time-Lag SMD Nano Fuse

HOLLY FUSE 25T-030H: SMD Nano Fuse, 3A, 250V AC. Interrupting-capacity data and standards were checked against Hollyland Current Fuse p12.

Series: 25T
Rated current: 3A
Rated voltage: 250V AC
Fuse characteristic: Slow-Blow / Time-Lag
Standards: UL 248-1, UL 248-14
Interrupting capacity: 50A at 250V AC / 100A at 125V AC/DC
Manufacturer-listed approval authorities: UR/cUR. Availability varies by rating/voltage
verify the exact catalog row.
Operating temperature: -55°C to +125°C
Source: Hollyland Current Fuse p12

Technical Specifications

Part Number: 25T-030H
Manufacturer Part Number: 25T-030H
Series: 25T
Fuse Type: SMD Nano Fuse
Current Rating: 3A
Voltage Rating: 250V AC
AC / DC: AC
Breaking Capacity: 50A at 250V AC / 100A at 125V AC/DC
I²t: 14.01 A²s
Pre-arcing I²t: 14.01
Total I²t: 14.01
Operating Temperature: -55°C to +125°C
Package / Dimensions: 2410
Mounting: SMD
Application: PCB / Electronic Circuit Protection
Standard: UL 248-1 · UL 248-14
Terminal Type: SMD End Pad
Fuse Speed: Time Delay
Rated current: 3A
Rated voltage: 250V AC
Fuse characteristic: Slow-Blow / Time-Lag
Standards: UL 248-1, UL 248-14
Interrupting capacity: 50A at 250V AC / 100A at 125V AC/DC
Manufacturer-listed approval authorities: UR/cUR. Availability varies by rating/voltage; verify the exact catalog row.
Operating temperature: -55°C to +125°C
Source: Hollyland Current Fuse p12
