Hollyland

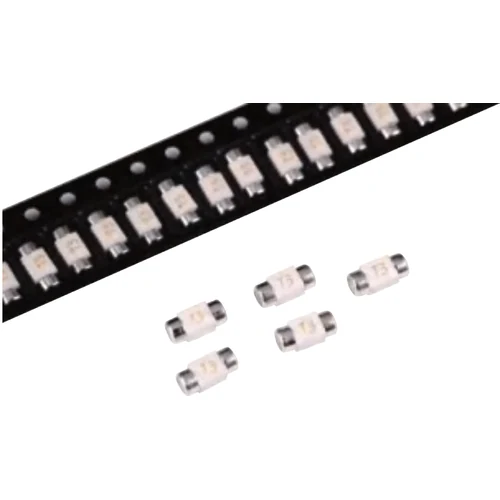

HOLLY FUSE 25T-016H 250V AC 1.6A SMD Nano Fuse

Name: HOLLY FUSE 25T-016H 250V AC 1.6A SMD Nano Fuse
Brand: Hollyland
SKU: 25T-016H

Part Number: 25T-016H

● Check availability

Use HOLLY FUSE 25T-016H where a slow-blow / time-lag fuse rated 1.6A and 250V AC is required.

Rated Current1.6A

Rated Voltage250V AC

Breaking Capacity50A at 250V AC / 100A at 125V AC/DC

Package2410

Tags

2410 250V AC 25T Slow-Blow / Time-Lag SMD Nano Fuse

HOLLY FUSE specifies 25T-016H at 1.6A and 250V AC. The device has a slow-blow / time-lag characteristic and catalog-grounded technical data from Current Fuse p12.

Specifications

Series: 25T
Rated current: 1.6A
Rated voltage: 250V AC
Fuse characteristic: Slow-Blow / Time-Lag
Standards: UL 248-1, UL 248-14
Interrupting capacity: 50A at 250V AC / 100A at 125V AC/DC
Manufacturer-listed approval authorities: UR/cUR. Availability varies by rating/voltage
verify the exact catalog row.
Operating temperature: -55°C to +125°C
Source: Hollyland Current Fuse p12

Technical Specifications

Part Number: 25T-016H
Manufacturer Part Number: 25T-016H
Series: 25T
Fuse Type: SMD Nano Fuse
Current Rating: 1.6A
Voltage Rating: 250V AC
AC / DC: AC
Breaking Capacity: 50A at 250V AC / 100A at 125V AC/DC
I²t: 4.98 A²s
Pre-arcing I²t: 4.98
Total I²t: 4.98
Operating Temperature: -55°C to +125°C
Package / Dimensions: 2410
Mounting: SMD
Application: PCB / Electronic Circuit Protection
Standard: UL 248-1 · UL 248-14
Terminal Type: SMD End Pad
Fuse Speed: Time Delay
Rated current: 1.6A
Rated voltage: 250V AC
Fuse characteristic: Slow-Blow / Time-Lag
Standards: UL 248-1, UL 248-14
Interrupting capacity: 50A at 250V AC / 100A at 125V AC/DC
Manufacturer-listed approval authorities: UR/cUR. Availability varies by rating/voltage; verify the exact catalog row.
Operating temperature: -55°C to +125°C
Source: Hollyland Current Fuse p12
