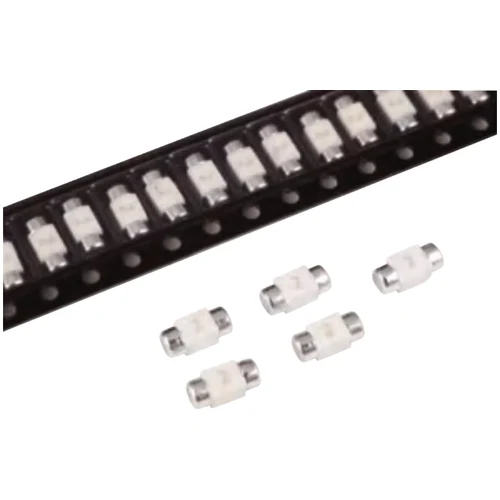

HOLLY FUSE 25F-200L1 125V AC/DC 20A SMD Nano Fuse

Name: HOLLY FUSE 25F-200L1 125V AC/DC 20A SMD Nano Fuse
Brand: Hollyland
SKU: 25F-200L1

Part Number: 25F-200L1

● Check availability

25F-200L1 from HOLLY FUSE provides 20A protection at 125V AC/DC in the 25F family.

Rated Current20A

Rated Voltage125V AC/DC

Breaking CapacityUp to 100A; varies by current, voltage and approval

Package2410

Tags

125V AC/DC 2410 25F fast acting SMD Nano Fuse

For circuit designs using the 25F family, part 25F-200L1 provides a 20A rating at 125V AC/DC. It follows UL 248-1, UL 248-14. Source: Hollyland Current Fuse p11.

Specifications

Series: 25F
Rated current: 20A
Rated voltage: 125V AC/DC
Fuse characteristic: Fast Acting
Standards: UL 248-1, UL 248-14
Interrupting capacity: Up to 100A
varies by current, voltage and approval
Manufacturer-listed approval authorities: CQC, UR/cUR, TÜV. Availability varies by rating/voltage
verify the exact catalog row.
Operating temperature: -55°C to +125°C
Source: Hollyland Current Fuse p11

Technical Specifications

Part Number: 25F-200L1
Manufacturer Part Number: 25F-200L1
Series: 25F
Fuse Type: SMD Nano Fuse
Current Rating: 20A
Voltage Rating: 125V AC/DC
AC / DC: AC/DC
Breaking Capacity: Up to 100A; varies by current, voltage and approval
I²t: 102.3 A²s
Pre-arcing I²t: 102.3
Total I²t: 102.3
Operating Temperature: -55°C to +125°C
Package / Dimensions: 2410
Mounting: SMD
Application: PCB / Electronic Circuit Protection
Standard: UL 248-1 · UL 248-14
Terminal Type: SMD End Pad
Fuse Speed: Fast Acting
Rated current: 20A
Rated voltage: 125V AC/DC
Fuse characteristic: Fast Acting
Standards: UL 248-1, UL 248-14
Interrupting capacity: Up to 100A; varies by current, voltage and approval
Manufacturer-listed approval authorities: CQC, UR/cUR, TÜV. Availability varies by rating/voltage; verify the exact catalog row.
Operating temperature: -55°C to +125°C
Source: Hollyland Current Fuse p11
