Hollyland

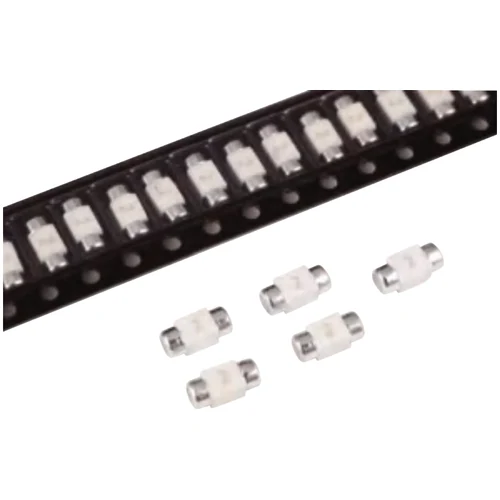

HOLLY FUSE 25F-0375L1 125V AC/DC 375mA SMD Nano Fuse

Name: HOLLY FUSE 25F-0375L1 125V AC/DC 375mA SMD Nano Fuse
Brand: Hollyland
SKU: 25F-0375L1

Part Number: 25F-0375L1

● Check availability

HOLLY FUSE 25F part 25F-0375L1 combines a 375mA current rating with 125V AC/DC operation.

Rated Current375mA

Rated Voltage125V AC/DC

Breaking CapacityUp to 100A; varies by current, voltage and approval

Package2410

Tags

125V AC/DC 2410 25F fast acting SMD Nano Fuse

Part 25F-0375L1 is a 25F-series smd nano fuse for pcb / electronic circuit protection, rated 375mA at 125V AC/DC. Applicable standards: UL 248-1, UL 248-14.

Specifications

Series: 25F
Rated current: 375mA
Rated voltage: 125V AC/DC
Fuse characteristic: Fast Acting
Standards: UL 248-1, UL 248-14
Interrupting capacity: Up to 100A
varies by current, voltage and approval
Manufacturer-listed approval authorities: CQC, UR/cUR, TÜV. Availability varies by rating/voltage
verify the exact catalog row.
Operating temperature: -55°C to +125°C
Source: Hollyland Current Fuse p11

Technical Specifications

Part Number: 25F-0375L1
Manufacturer Part Number: 25F-0375L1
Series: 25F
Fuse Type: SMD Nano Fuse
Current Rating: 375mA
Voltage Rating: 125V AC/DC
AC / DC: AC/DC
Breaking Capacity: Up to 100A; varies by current, voltage and approval
I²t: 0.067 A²s
Pre-arcing I²t: 0.067
Total I²t: 0.067
Operating Temperature: -55°C to +125°C
Package / Dimensions: 2410
Mounting: SMD
Application: PCB / Electronic Circuit Protection
Standard: UL 248-1 · UL 248-14
Terminal Type: SMD End Pad
Fuse Speed: Fast Acting
Rated current: 375mA
Rated voltage: 125V AC/DC
Fuse characteristic: Fast Acting
Standards: UL 248-1, UL 248-14
Interrupting capacity: Up to 100A; varies by current, voltage and approval
Manufacturer-listed approval authorities: CQC, UR/cUR, TÜV. Availability varies by rating/voltage; verify the exact catalog row.
Operating temperature: -55°C to +125°C
Source: Hollyland Current Fuse p11
