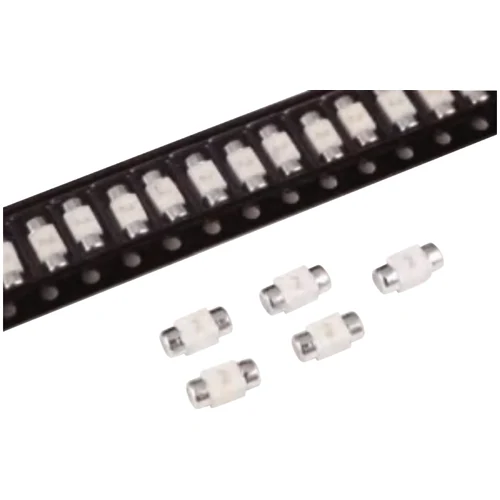

HOLLY FUSE 25F-016H 250V AC 1.6A SMD Nano Fuse

Name: HOLLY FUSE 25F-016H 250V AC 1.6A SMD Nano Fuse
Brand: Hollyland
SKU: 25F-016H

Part Number: 25F-016H

● Check availability

Use HOLLY FUSE 25F-016H where a fast acting fuse rated 1.6A and 250V AC is required.

Rated Current1.6A

Rated Voltage250V AC

Breaking CapacityUp to 100A; varies by current, voltage and approval

Package2410

Tags

2410 250V AC 25F fast acting SMD Nano Fuse

HOLLY FUSE specifies 25F-016H at 1.6A and 250V AC. The device has a fast acting characteristic and catalog-grounded technical data from Current Fuse p11.

Specifications

Series: 25F
Rated current: 1.6A
Rated voltage: 250V AC
Fuse characteristic: Fast Acting
Standards: UL 248-1, UL 248-14
Interrupting capacity: Up to 100A
varies by current, voltage and approval
Manufacturer-listed approval authorities: CQC, UR/cUR, TÜV. Availability varies by rating/voltage
verify the exact catalog row.
Operating temperature: -55°C to +125°C
Source: Hollyland Current Fuse p11

Technical Specifications

Part Number: 25F-016H
Manufacturer Part Number: 25F-016H
Series: 25F
Fuse Type: SMD Nano Fuse
Current Rating: 1.6A
Voltage Rating: 250V AC
AC / DC: AC
Breaking Capacity: Up to 100A; varies by current, voltage and approval
I²t: 0.97 A²s
Pre-arcing I²t: 0.97
Total I²t: 0.97
Operating Temperature: -55°C to +125°C
Package / Dimensions: 2410
Mounting: SMD
Application: PCB / Electronic Circuit Protection
Standard: UL 248-1 · UL 248-14
Terminal Type: SMD End Pad
Fuse Speed: Fast Acting
Rated current: 1.6A
Rated voltage: 250V AC
Fuse characteristic: Fast Acting
Standards: UL 248-1, UL 248-14
Interrupting capacity: Up to 100A; varies by current, voltage and approval
Manufacturer-listed approval authorities: CQC, UR/cUR, TÜV. Availability varies by rating/voltage; verify the exact catalog row.
Operating temperature: -55°C to +125°C
Source: Hollyland Current Fuse p11
