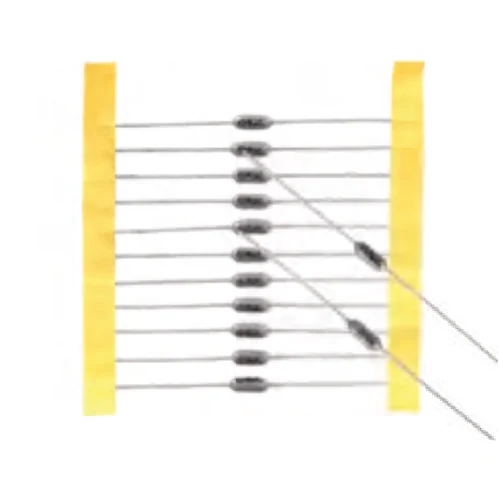

HOLLY FUSE 20T-070L 125V AC 7A Microfuse

Name: HOLLY FUSE 20T-070L 125V AC 7A Microfuse
Brand: Hollyland
SKU: 20T-070L

Part Number: 20T-070L

● Check availability

HOLLY FUSE 20T-070L is a Microfuse rated 7A at 125V AC, with catalog-checked technical data.

Rated Current7A

Rated Voltage125V AC

Breaking Capacity30A at 125V/250V AC; PSE up to 100A

Package2.4×7mm

Tags

125V AC 2.4×7mm 20T Microfuse Slow-Blow / Time-Lag

HOLLY FUSE 20T-070L belongs to the 20T series and is specified as a microfuse rated 7A at 125V AC. Interrupting capacity: 30A at 125V/250V AC; PSE up to 100A. Standards: UL 248-1, UL 248-14. Source: Hollyland Current Fuse p22.

Technical Specifications

Part Number: 20T-070L
Manufacturer Part Number: 20T-070L
Series: 20T
Fuse Type: Microfuse
Current Rating: 7A
Voltage Rating: 125V AC
AC / DC: AC
Breaking Capacity: 30A at 125V/250V AC; PSE up to 100A
I²t: 72.91 A²s
Pre-arcing I²t: 72.91
Total I²t: 72.91
Operating Temperature: -55°C to +125°C
Package / Dimensions: 2.4×7mm
Mounting: Cartridge / Leaded
Application: Electronic Circuit Protection
Standard: UL 248-1 · UL 248-14
Terminal Type: Radial Lead
Fuse Speed: Time Delay
Rated current: 7A
Rated voltage: 125V AC
Fuse characteristic: Slow-Blow / Time-Lag
Standards: UL 248-1, UL 248-14
Interrupting capacity: 30A at 125V/250V AC; PSE up to 100A
Manufacturer-listed approval authorities: CCC, UR/cUR, CSA, TÜV, PSE. Availability varies by rating/voltage; verify the exact catalog row.
Operating temperature: -55°C to +125°C
Source: Hollyland Current Fuse p22
