What are the current and voltage ratings of 20T-010H?

20T-010H is rated 1A at 250V AC.

What is the breaking capacity of 20T-010H?

20T-010H has a breaking capacity of 30A at 125V/250V AC; PSE up to 100A. Confirm this covers the available fault current at the installation point.

20T-010H uses 2.4×7mm package size.

20T-010H is listed under UL 248-1, UL 248-14.

20T-010H is listed for Electronic Circuit Protection applications. Verify suitability for your circuit before ordering.

Hollyland

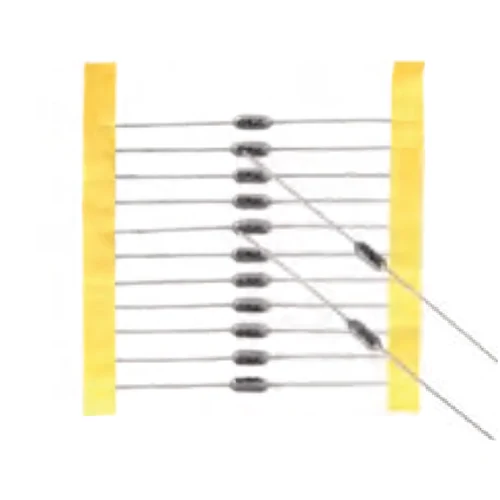

Name: HOLLY FUSE 20T-010H 250V AC 1A Microfuse
Brand: Hollyland
SKU: 20T-010H

Part Number: 20T-010H

● Check availability

Technical listing for HOLLY FUSE 20T-010H: 1A, 250V AC, standards UL 248-1, UL 248-14.

Rated Current1A

Rated Voltage250V AC

Breaking Capacity30A at 125V/250V AC; PSE up to 100A

Package2.4×7mm

Tags

2.4×7mm 20T 250V AC Microfuse Slow-Blow / Time-Lag

HOLLY FUSE 20T-010H: Microfuse, 1A, 250V AC. Interrupting-capacity data and standards were checked against Hollyland Current Fuse p22.

Series: 20T
Rated current: 1A
Rated voltage: 250V AC
Fuse characteristic: Slow-Blow / Time-Lag
Standards: UL 248-1, UL 248-14
Interrupting capacity: 30A at 125V/250V AC
PSE up to 100A
Manufacturer-listed approval authorities: CCC, UR/cUR, CSA, TÜV, PSE. Availability varies by rating/voltage
verify the exact catalog row.
Operating temperature: -55°C to +125°C
Source: Hollyland Current Fuse p22

Part Number: 20T-010H
Manufacturer Part Number: 20T-010H
Series: 20T
Fuse Type: Microfuse
Current Rating: 1A
Voltage Rating: 250V AC
AC / DC: AC
Breaking Capacity: 30A at 125V/250V AC; PSE up to 100A
I²t: 1.916 A²s
Pre-arcing I²t: 1.916
Total I²t: 1.916
Operating Temperature: -55°C to +125°C
Package / Dimensions: 2.4×7mm
Mounting: Cartridge / Leaded
Application: Electronic Circuit Protection
Standard: UL 248-1 · UL 248-14
Terminal Type: Radial Lead
Fuse Speed: Time Delay
Rated current: 1A
Rated voltage: 250V AC
Fuse characteristic: Slow-Blow / Time-Lag
Standards: UL 248-1, UL 248-14
Interrupting capacity: 30A at 125V/250V AC; PSE up to 100A
Manufacturer-listed approval authorities: CCC, UR/cUR, CSA, TÜV, PSE. Availability varies by rating/voltage; verify the exact catalog row.
Operating temperature: -55°C to +125°C
Source: Hollyland Current Fuse p22
