What are the current and voltage ratings of 20S-0750L?

20S-0750L is rated 750mA at 125V AC.

What is the breaking capacity of 20S-0750L?

20S-0750L has a breaking capacity of 50A at 125V/250V AC; PSE up to 100A. Confirm this covers the available fault current at the installation point.

What package size does 20S-0750L use?

20S-0750L uses 2.4×7mm package size.

Which standards and approvals apply to 20S-0750L?

20S-0750L is listed under UL 248-1, UL 248-14.

What is 20S-0750L used for?

20S-0750L is listed for Electronic Circuit Protection applications. Verify suitability for your circuit before ordering.

Hollyland

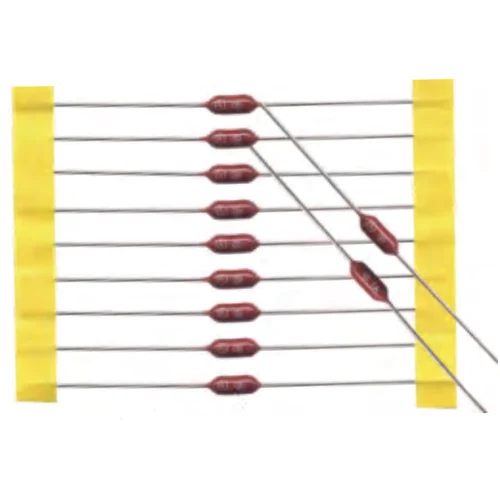

HOLLY FUSE 20S-0750L 125V AC 750mA Microfuse

Name: HOLLY FUSE 20S-0750L 125V AC 750mA Microfuse
Brand: Hollyland
SKU: 20S-0750L

Part Number: 20S-0750L

● Check availability

Use HOLLY FUSE 20S-0750L where a medium slow-blow fuse rated 750mA and 125V AC is required.

Rated Current750mA

Rated Voltage125V AC

Breaking Capacity50A at 125V/250V AC; PSE up to 100A

Package2.4×7mm

Tags

HOLLY FUSE specifies 20S-0750L at 750mA and 125V AC. The device has a medium slow-blow characteristic and catalog-grounded technical data from Current Fuse p21.

Specifications

Series: 20S
Rated current: 750mA
Rated voltage: 125V AC
Fuse characteristic: Medium Slow-Blow
Standards: UL 248-1, UL 248-14
Interrupting capacity: 50A at 125V/250V AC
PSE up to 100A
Manufacturer-listed approval authorities: CCC, UL/cUL, CSA, PSE. Availability varies by rating/voltage
verify the exact catalog row.
Operating temperature: -55°C to +125°C
Source: Hollyland Current Fuse p21

Technical Specifications

Part Number: 20S-0750L
Manufacturer Part Number: 20S-0750L
Series: 20S
Fuse Type: Microfuse
Current Rating: 750mA
Voltage Rating: 125V AC
AC / DC: AC
Breaking Capacity: 50A at 125V/250V AC; PSE up to 100A
I²t: 0.4989 A²s
Pre-arcing I²t: 0.4989
Total I²t: 0.4989
Operating Temperature: -55°C to +125°C
Package / Dimensions: 2.4×7mm
Mounting: Cartridge / Leaded
Application: Electronic Circuit Protection
Standard: UL 248-1 · UL 248-14
Terminal Type: Radial Lead
Fuse Speed: Medium Time-Delay
Rated current: 750mA
Rated voltage: 125V AC
Fuse characteristic: Medium Slow-Blow
Standards: UL 248-1, UL 248-14
Interrupting capacity: 50A at 125V/250V AC; PSE up to 100A
Manufacturer-listed approval authorities: CCC, UL/cUL, CSA, PSE. Availability varies by rating/voltage; verify the exact catalog row.
Operating temperature: -55°C to +125°C
Source: Hollyland Current Fuse p21
