What are the current and voltage ratings of 20S-013L?

20S-013L is rated 1.25A at 125V AC.

What is the breaking capacity of 20S-013L?

20S-013L has a breaking capacity of 50A at 125V/250V AC; PSE up to 100A. Confirm this covers the available fault current at the installation point.

20S-013L uses 2.4×7mm package size.

20S-013L is listed under UL 248-1, UL 248-14.

20S-013L is listed for Electronic Circuit Protection applications. Verify suitability for your circuit before ordering.

Hollyland

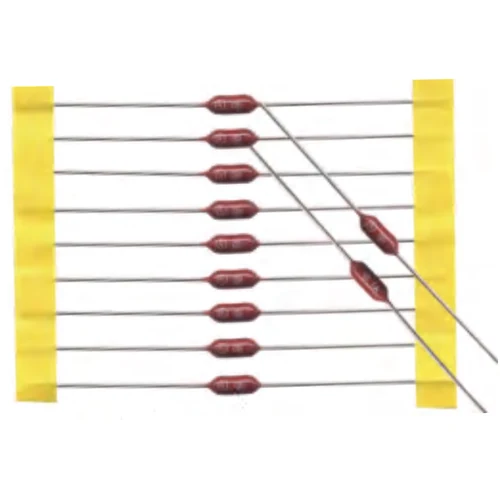

Name: HOLLY FUSE 20S-013L 125V AC 1.25A Microfuse
Brand: Hollyland
SKU: 20S-013L

Part Number: 20S-013L

● Check availability

HOLLY FUSE 20S part 20S-013L combines a 1.25A current rating with 125V AC operation.

Rated Current1.25A

Rated Voltage125V AC

Breaking Capacity50A at 125V/250V AC; PSE up to 100A

Package2.4×7mm

Tags

125V AC 2.4×7mm 20S Medium Slow-Blow Microfuse

Part 20S-013L is a 20S-series microfuse for electronic circuit protection, rated 1.25A at 125V AC. Applicable standards: UL 248-1, UL 248-14.

Series: 20S
Rated current: 1.25A
Rated voltage: 125V AC
Fuse characteristic: Medium Slow-Blow
Standards: UL 248-1, UL 248-14
Interrupting capacity: 50A at 125V/250V AC
PSE up to 100A
Manufacturer-listed approval authorities: CCC, UL/cUL, CSA, PSE. Availability varies by rating/voltage
verify the exact catalog row.
Operating temperature: -55°C to +125°C
Source: Hollyland Current Fuse p21

Part Number: 20S-013L
Manufacturer Part Number: 20S-013L
Series: 20S
Fuse Type: Microfuse
Current Rating: 1.25A
Voltage Rating: 125V AC
AC / DC: AC
Breaking Capacity: 50A at 125V/250V AC; PSE up to 100A
I²t: 1.749 A²s
Pre-arcing I²t: 1.749
Total I²t: 1.749
Operating Temperature: -55°C to +125°C
Package / Dimensions: 2.4×7mm
Mounting: Cartridge / Leaded
Application: Electronic Circuit Protection
Standard: UL 248-1 · UL 248-14
Terminal Type: Radial Lead
Fuse Speed: Medium Time-Delay
Rated current: 1.25A
Rated voltage: 125V AC
Fuse characteristic: Medium Slow-Blow
Standards: UL 248-1, UL 248-14
Interrupting capacity: 50A at 125V/250V AC; PSE up to 100A
Manufacturer-listed approval authorities: CCC, UL/cUL, CSA, PSE. Availability varies by rating/voltage; verify the exact catalog row.
Operating temperature: -55°C to +125°C
Source: Hollyland Current Fuse p21
