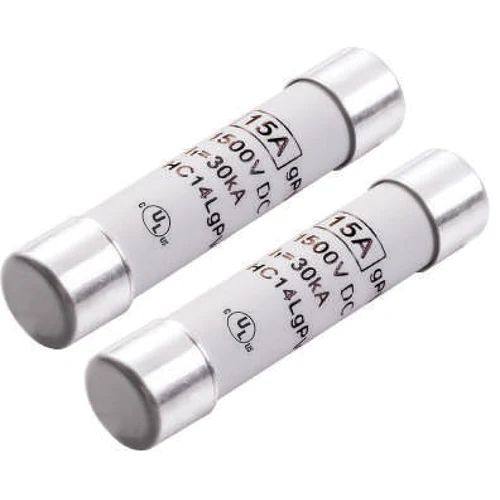

HOLLY FUSE 14LgPV15U15 1500V 15A Photovoltaic Fuse

Name: HOLLY FUSE 14LgPV15U15 1500V 15A Photovoltaic Fuse
Brand: Hollyland
SKU: 14LgPV15U15

Part Number: 14LgPV15U15

● LT: 2-4w

14LgPV15U15 photovoltaic fuse from HOLLY FUSE combines a 15A current rating with a 1500V voltage rating.

Rated Current15A

Rated Voltage1500V

Breaking Capacity30000A at 1500V DC

Package14×51mm

Tags

14x51mm 1500V DC Bolt-Down gPV Photovoltaic Fuses Very Fast Acting

The HOLLY FUSE 14LgPV15U15 photovoltaic fuse carries 15A, 1500V and belongs to the HC14LgPV family. Standards: UL 248. Approvals: UL Listed. Interrupting/breaking capacity: 30000A at 1500V DC.

Specifications

Type: Photovoltaic Fuses
Rated current type: DC
Standards also cited: UL 248-19
Source: powerfuse catalogue page 36

Technical Specifications

Part Number: 14LgPV15U15
Manufacturer Part Number: 14LgPV15U15
Series: HC14LgPV
Fuse Type: Photovoltaic Fuses
Current Rating: 15A
Voltage Rating: 1500V
AC / DC: DC
Breaking Capacity: 30000A at 1500V DC
Package / Dimensions: 14×51mm
Mounting: Bolt-Down
Application: Solar PV
Standard: UL 248
Terminal Type: Ferrule
Fuse Speed: Very Fast Acting
Utilization Class: gPV
Approvals: UL Listed
Certifications: UL Listed
Type: Photovoltaic Fuses; Rated current type: DC; Standards also cited: UL 248-19; Source: powerfuse catalogue page 36
