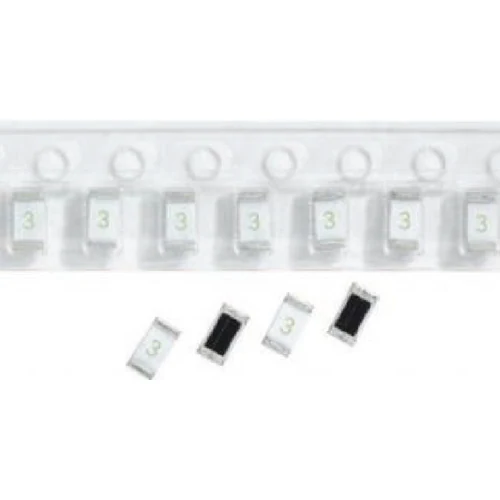

HOLLY FUSE 12F-0500L 24V / 32V / 63V 500mA Surface Mount Fuse

Name: HOLLY FUSE 12F-0500L 24V / 32V / 63V 500mA Surface Mount Fuse
Brand: Hollyland
SKU: 12F-0500L

Part Number: 12F-0500L

● Check availability

Manufacturer-checked 12F-0500L: 500mA, 24V / 32V / 63V, fast acting surface mount fuse for pcb / electronic circuit protection.

Rated Current500mA

Rated Voltage24V / 32V / 63V

Breaking CapacityUp to 50A; varies by current and voltage

Package1206

Tags

1206 12F 24V / 32V / 63V fast acting Surface Mount Fuse

The HOLLY FUSE 12F-0500L is intended for pcb / electronic circuit protection. Key ratings are 500mA and 24V / 32V / 63V, with a fast acting characteristic. Manufacturer reference: Current Fuse p09.

Specifications

Series: 12F
Rated current: 500mA
Rated voltage: 24V / 32V / 63V
Fuse characteristic: Fast Acting
Standards: UL 248-1, UL 248-14
Interrupting capacity: Up to 50A
varies by current and voltage
Manufacturer-listed approval authorities: UR, cUR. Availability varies by rating/voltage
verify the exact catalog row.
Operating temperature: -55°C to +125°C
Source: Hollyland Current Fuse p09

Technical Specifications

Part Number: 12F-0500L
Manufacturer Part Number: 12F-0500L
Series: 12F
Fuse Type: Surface Mount Fuse
Current Rating: 500mA
Voltage Rating: 24V / 32V / 63V
AC / DC: AC/DC
Breaking Capacity: Up to 50A; varies by current and voltage
I²t: 0.0049 A²s
Pre-arcing I²t: 0.0049
Total I²t: 0.0049
Operating Temperature: -55°C to +125°C
Package / Dimensions: 1206
Mounting: SMD
Application: PCB / Electronic Circuit Protection
Standard: UL 248-1 · UL 248-14
Terminal Type: SMD End Pad
Fuse Speed: Fast Acting
Rated current: 500mA
Rated voltage: 24V / 32V / 63V
Fuse characteristic: Fast Acting
Standards: UL 248-1, UL 248-14
Interrupting capacity: Up to 50A; varies by current and voltage
Manufacturer-listed approval authorities: UR, cUR. Availability varies by rating/voltage; verify the exact catalog row.
Operating temperature: -55°C to +125°C
Source: Hollyland Current Fuse p09
