What are the current and voltage ratings of 10aR-C32U6?

10aR-C32U6 is rated 32A at 690V AC/DC.

What is the breaking capacity of 10aR-C32U6?

10aR-C32U6 has a breaking capacity of 80,000A at 690V AC / 50,000A at 690V DC. Confirm this covers the available fault current at the installation point.

What package size does 10aR-C32U6 use?

10aR-C32U6 uses 10.3×38mm package size.

Which standards and approvals apply to 10aR-C32U6?

10aR-C32U6 is listed under GB/T 13539.4, IEC 60269-4, UL 248-13.

What is 10aR-C32U6 used for?

10aR-C32U6 is listed for Power Electronics / Semiconductor Protection applications. Verify suitability for your circuit before ordering.

Hollyland

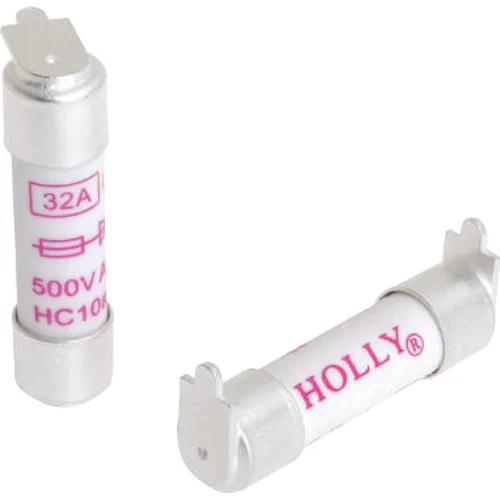

HOLLY FUSE 10aR-C32U6 690V AC/DC 32A aR Semiconductor Fuse

Name: HOLLY FUSE 10aR-C32U6 690V AC/DC 32A aR Semiconductor Fuse
Brand: Hollyland
SKU: 10aR-C32U6

Part Number: 10aR-C32U6

● Check availability

HOLLY FUSE 10aR-C32U6 is a aR Semiconductor Fuse rated 32A at 690V AC/DC, with catalog-checked technical data.

Rated Current32A

Rated Voltage690V AC/DC

Breaking Capacity80,000A at 690V AC / 50,000A at 690V DC

Package10.3×38mm

Tags

HOLLY FUSE 10aR-C32U6 belongs to the HC10aR-C series and is specified as a cylindrical semiconductor fuse rated 32A at 690V AC/DC. Interrupting capacity: 80,000A at 690V AC / 50,000A at 690V DC. Standards: IEC 60269-4, GB/T 13539.4, UL 248-13. Source: Hollyland Powerfuse p86.

Technical Specifications

Part Number: 10aR-C32U6
Manufacturer Part Number: 10aR-C32U6
Series: HC10aR-C
Fuse Type: Cylindrical Semiconductor Fuse
Current Rating: 32A
Voltage Rating: 690V AC/DC
AC / DC: AC/DC
Breaking Capacity: 80,000A at 690V AC / 50,000A at 690V DC
Package / Dimensions: 10.3×38mm
Mounting: Cartridge / Clip
Application: Power Electronics / Semiconductor Protection
Standard: GB/T 13539.4 · IEC 60269-4 · UL 248-13
Terminal Type: Ferrule
Fuse Speed: Very Fast Acting
Utilization Class: aR
Rated current: 32A
Rated voltage: 690V AC/DC
Fuse characteristic: Very Fast Acting
Standards: IEC 60269-4, GB/T 13539.4, UL 248-13
Interrupting capacity: 80,000A at 690V AC / 50,000A at 690V DC
Confirmed approvals: none shown as approved for this exact row; pending marks excluded
Source: Hollyland Powerfuse p86
