Hollyland

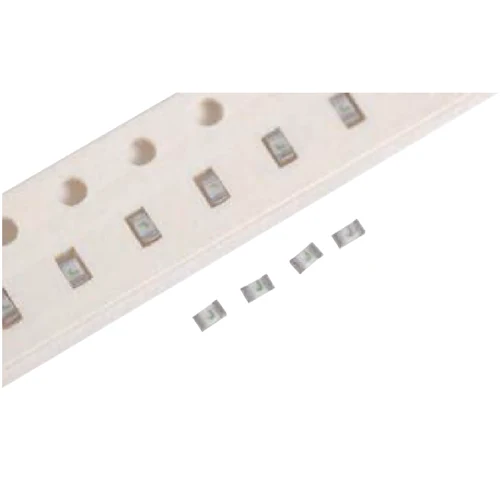

HOLLY FUSE 06F-050L 32V / 63V 5A Surface Mount Fuse

Name: HOLLY FUSE 06F-050L 32V / 63V 5A Surface Mount Fuse
Brand: Hollyland
SKU: 06F-050L

Part Number: 06F-050L

● Check availability

Technical listing for HOLLY FUSE 06F-050L: 5A, 32V / 63V, standards UL 248-1, UL 248-14.

Rated Current5A

Rated Voltage32V / 63V

Breaking CapacityUp to 50A; varies by current and voltage

Package0603

Tags

0603 06F 32V / 63V fast acting Surface Mount Fuse

HOLLY FUSE 06F-050L: Surface Mount Fuse, 5A, 32V / 63V. Interrupting-capacity data and standards were checked against Hollyland Current Fuse p07.

Series: 06F
Rated current: 5A
Rated voltage: 32V / 63V
Fuse characteristic: Fast Acting
Standards: UL 248-1, UL 248-14
Interrupting capacity: Up to 50A
varies by current and voltage
Manufacturer-listed approval authorities: UR, cUR. Availability varies by rating/voltage
verify the exact catalog row.
Operating temperature: -55°C to +125°C
Source: Hollyland Current Fuse p07

Technical Specifications

Part Number: 06F-050L
Manufacturer Part Number: 06F-050L
Series: 06F
Fuse Type: Surface Mount Fuse
Current Rating: 5A
Voltage Rating: 32V / 63V
AC / DC: AC/DC
Breaking Capacity: Up to 50A; varies by current and voltage
I²t: 1.1 A²s
Pre-arcing I²t: 1.1
Total I²t: 1.1
Operating Temperature: -55°C to +125°C
Package / Dimensions: 0603
Mounting: SMD
Application: PCB / Electronic Circuit Protection
Standard: UL 248-1 · UL 248-14
Terminal Type: SMD End Pad
Fuse Speed: Fast Acting
Rated current: 5A
Rated voltage: 32V / 63V
Fuse characteristic: Fast Acting
Standards: UL 248-1, UL 248-14
Interrupting capacity: Up to 50A; varies by current and voltage
Manufacturer-listed approval authorities: UR, cUR. Availability varies by rating/voltage; verify the exact catalog row.
Operating temperature: -55°C to +125°C
Source: Hollyland Current Fuse p07
