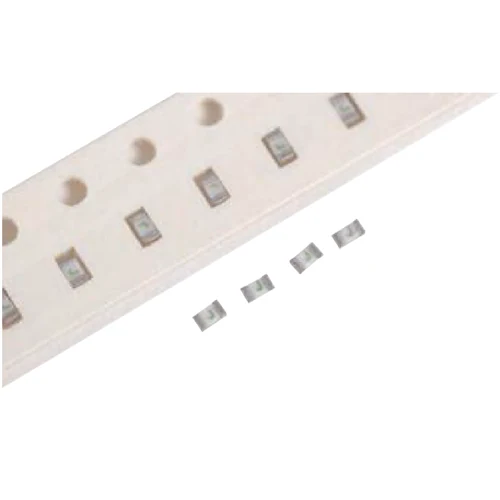

HOLLY FUSE 06F-035L 32V / 63V 3.5A Surface Mount Fuse

Name: HOLLY FUSE 06F-035L 32V / 63V 3.5A Surface Mount Fuse
Brand: Hollyland
SKU: 06F-035L

Part Number: 06F-035L

● Check availability

Manufacturer-checked 06F-035L: 3.5A, 32V / 63V, fast acting surface mount fuse for pcb / electronic circuit protection.

Rated Current3.5A

Rated Voltage32V / 63V

Breaking CapacityUp to 50A; varies by current and voltage

Package0603

Tags

0603 06F 32V / 63V fast acting Surface Mount Fuse

The HOLLY FUSE 06F-035L is intended for pcb / electronic circuit protection. Key ratings are 3.5A and 32V / 63V, with a fast acting characteristic. Manufacturer reference: Current Fuse p07.

Specifications

Series: 06F
Rated current: 3.5A
Rated voltage: 32V / 63V
Fuse characteristic: Fast Acting
Standards: UL 248-1, UL 248-14
Interrupting capacity: Up to 50A
varies by current and voltage
Manufacturer-listed approval authorities: UR, cUR. Availability varies by rating/voltage
verify the exact catalog row.
Operating temperature: -55°C to +125°C
Source: Hollyland Current Fuse p07

Technical Specifications

Part Number: 06F-035L
Manufacturer Part Number: 06F-035L
Series: 06F
Fuse Type: Surface Mount Fuse
Current Rating: 3.5A
Voltage Rating: 32V / 63V
AC / DC: AC/DC
Breaking Capacity: Up to 50A; varies by current and voltage
I²t: 0.361 A²s
Pre-arcing I²t: 0.361
Total I²t: 0.361
Operating Temperature: -55°C to +125°C
Package / Dimensions: 0603
Mounting: SMD
Application: PCB / Electronic Circuit Protection
Standard: UL 248-1 · UL 248-14
Terminal Type: SMD End Pad
Fuse Speed: Fast Acting
Rated current: 3.5A
Rated voltage: 32V / 63V
Fuse characteristic: Fast Acting
Standards: UL 248-1, UL 248-14
Interrupting capacity: Up to 50A; varies by current and voltage
Manufacturer-listed approval authorities: UR, cUR. Availability varies by rating/voltage; verify the exact catalog row.
Operating temperature: -55°C to +125°C
Source: Hollyland Current Fuse p07
