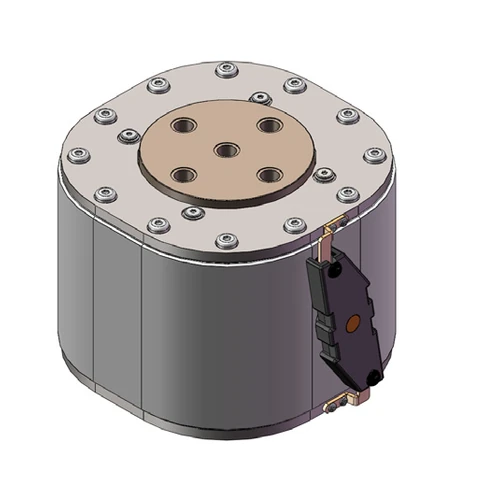

Eaton Bussmann CBX5M15-3500 3500A 1500V AC aR High-Speed Fuse

Name: Eaton Bussmann CBX5M15-3500 3500A 1500V AC aR High-Speed Fuse
Brand: Eaton Bussmann
SKU: CBX5M15-3500

Part Number: CBX5M15-3500

● Check availability

Eaton Bussmann CBX5M15-3500 pairs a 3500A rating with 1500V AC capability in a flush-end square-body high-speed fuse.

Rated Current3500A

Rated Voltage1500V AC

Tags

aR Fuse bussmann fuse flush end High-Speed Fuse square body fuse

The Bussmann CBX5M15-3500 high-speed fuse supports high-voltage drive, common-bus and rectifier applications. Electrical ratings are 3500A and 1500V AC, with aR response, 8,000,000 A²s pre-arcing I²t and 410 W loss at rated current.

Technical Specifications

Part Number: CBX5M15-3500
Manufacturer Part Number: CBX5M15-3500
Series: CBX5M15 Series
Fuse Type: High-Speed Square-Body Fuse
Current Rating: 3500A
Voltage Rating: 1500V AC
AC / DC: AC
I²t: Pre-arcing 8,000,000 A²s; max operating 51,600,000 A²s
Pre-arcing I²t: 8000000
Total I²t: 51600000
Application: AC/DC common bus · AC/DC drives · Power converters/rectifiers · Reduced-voltage starters
Terminal Type: Flush End
Fuse Speed: High-Speed
Utilization Class: aR
Power loss at rated current: 410 W. Square-body flush-end high-speed fuse link.
