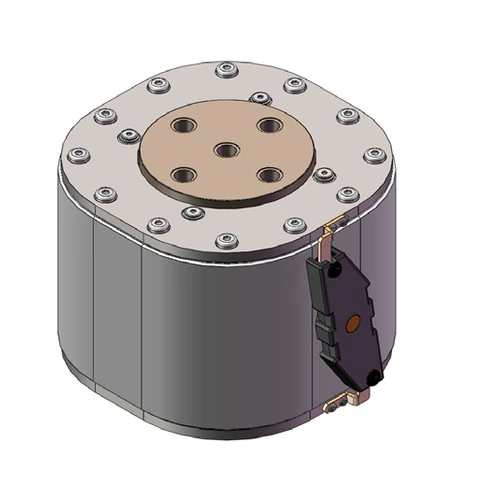

Eaton Bussmann CBX5M15-2500 2500A 1500V AC aR High-Speed Fuse

Name: Eaton Bussmann CBX5M15-2500 2500A 1500V AC aR High-Speed Fuse
Brand: Eaton Bussmann
SKU: CBX5M15-2500

Part Number: CBX5M15-2500

● Check availability

CBX5M15-2500 is a 2500A, 1500V AC Bussmann aR square-body fuse for high-power rectifier and converter protection.

Rated Current2500A

Rated Voltage1500V AC

Tags

aR Fuse bussmann fuse flush end High-Speed Fuse square body fuse

Eaton Bussmann CBX5M15-2500 is a CBX5M15 series high-speed fuse link rated 2500A at 1500V AC. The aR square-body, flush-end design is intended for AC/DC common bus systems, drives, power converters and rectifiers. Listed energy data is 2,900,000 A²s pre-arcing I²t and 20,700,000 A²s maximum operating I²t; rated-current power loss is 350 W.

Technical Specifications

Part Number: CBX5M15-2500
Manufacturer Part Number: CBX5M15-2500
Series: CBX5M15 Series
Fuse Type: High-Speed Square-Body Fuse
Current Rating: 2500A
Voltage Rating: 1500V AC
AC / DC: AC
I²t: Pre-arcing 2,900,000 A²s; max operating 20,700,000 A²s
Pre-arcing I²t: 2900000
Total I²t: 20700000
Application: AC/DC common bus · AC/DC drives · Power converters/rectifiers · Reduced-voltage starters
Terminal Type: Flush End
Fuse Speed: High-Speed
Utilization Class: aR
Power loss at rated current: 350 W. Square-body flush-end high-speed fuse link.
