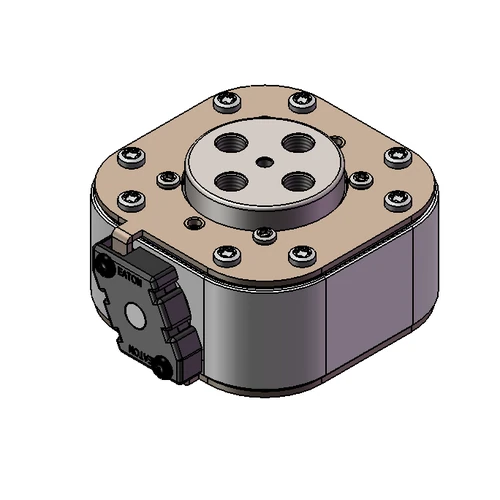

Eaton Bussmann CBX4M15-1700 1700A 1500V AC aR High-Speed Fuse

Name: Eaton Bussmann CBX4M15-1700 1700A 1500V AC aR High-Speed Fuse
Brand: Eaton Bussmann
SKU: CBX4M15-1700

Part Number: CBX4M15-1700

● Check availability

Built for high-power conversion equipment, Eaton Bussmann CBX4M15-1700 provides 1700A at 1500V AC with aR high-speed response.

Rated Current1700A

Rated Voltage1500V AC

Tags

aR Fuse bussmann fuse flush end High-Speed Fuse square body fuse

For high-power rectifier and converter protection, CBX4M15-1700 uses a square-body flush-end construction with aR operating class. It is rated 1700A at 1500V AC and has 1,800,000 A²s pre-arcing I²t with 9,900,000 A²s maximum operating I²t.

Technical Specifications

Part Number: CBX4M15-1700
Manufacturer Part Number: CBX4M15-1700
Series: CBX4M15 Series
Fuse Type: High-Speed Square-Body Fuse
Current Rating: 1700A
Voltage Rating: 1500V AC
AC / DC: AC
I²t: Pre-arcing 1,800,000 A²s; max operating 9,900,000 A²s
Pre-arcing I²t: 1800000
Total I²t: 9900000
Application: AC/DC common bus · AC/DC drives · Power converters/rectifiers · Reduced-voltage starters
Terminal Type: Flush End
Fuse Speed: High-Speed
Utilization Class: aR
Power loss at rated current: 265 W. Square-body flush-end high-speed fuse link.
