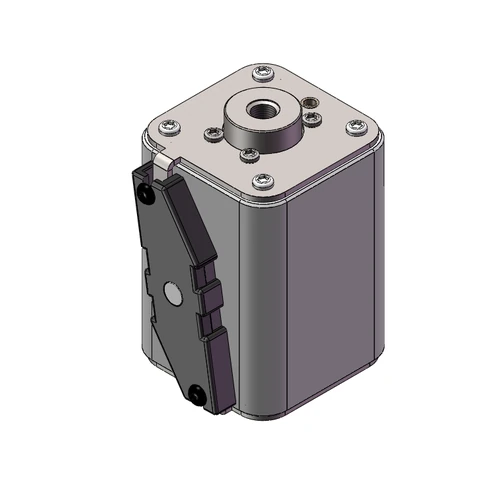

Eaton Bussmann CBX3M15-900 900A 1500V AC aR High-Speed Fuse

Name: Eaton Bussmann CBX3M15-900 900A 1500V AC aR High-Speed Fuse
Brand: Eaton Bussmann
SKU: CBX3M15-900

Part Number: CBX3M15-900

● Check availability

CBX3M15-900 is a 900A, 1500V AC Bussmann aR square-body fuse for high-power rectifier and converter protection.

Rated Current900A

Rated Voltage1500V AC

Tags

aR Fuse bussmann fuse flush end High-Speed Fuse square body fuse

Eaton Bussmann CBX3M15-900 is a CBX3M15 series high-speed fuse link rated 900A at 1500V AC. The aR square-body, flush-end design is intended for AC/DC common bus systems, drives, power converters and rectifiers. Listed energy data is 590,000 A²s pre-arcing I²t and 3,250,000 A²s maximum operating I²t; rated-current power loss is 130 W.

Technical Specifications

Part Number: CBX3M15-900
Manufacturer Part Number: CBX3M15-900
Series: CBX3M15 Series
Fuse Type: High-Speed Square-Body Fuse
Current Rating: 900A
Voltage Rating: 1500V AC
AC / DC: AC
I²t: Pre-arcing 590,000 A²s; max operating 3,250,000 A²s
Pre-arcing I²t: 590000
Total I²t: 3250000
Application: AC/DC common bus · AC/DC drives · Power converters/rectifiers · Reduced-voltage starters
Terminal Type: Flush End
Fuse Speed: High-Speed
Utilization Class: aR
Power loss at rated current: 130 W. Square-body flush-end high-speed fuse link.
