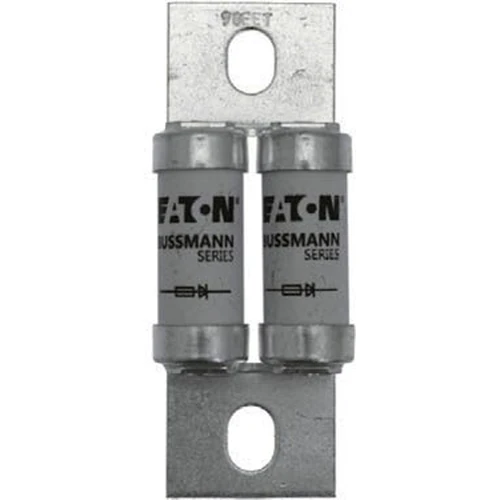

Eaton Bussmann 25ET-A 25A 690V AC / 500V DC aR BS88 Fuse

Name: Eaton Bussmann 25ET-A 25A 690V AC / 500V DC aR BS88 Fuse
Brand: Eaton Bussmann
SKU: 25ET-A

Part Number: 25ET-A

● Check availability

25ET-A is a compact Bussmann BS88 high-speed fuse link with 25A current rating and aR semiconductor protection class.

Rated Current25A

Rated Voltage690V AC / 500V DC (IEC); 700V AC / 500V DC (UL)

Breaking Capacity150kA AC / 50kA DC (IEC); 200kA AC / 50kA DC (UL)

Tags

aR Fuse bussmann fuse High-Speed Fuse

Designed in the BS88 format, Eaton Bussmann 25ET-A combines a 25A current rating with low arc voltage and low I²t performance. It supports 690V AC / 500V DC IEC applications and carries CE, CCC and UL agency information in the catalogue.

Technical Specifications

Part Number: 25ET-A
Manufacturer Part Number: 25ET-A
Series: ET-A Series
Fuse Type: BS88 High-Speed Fuse Link
Current Rating: 25A
Voltage Rating: 690V AC / 500V DC (IEC); 700V AC / 500V DC (UL)
AC / DC: AC/DC
Breaking Capacity: 150kA AC / 50kA DC (IEC); 200kA AC / 50kA DC (UL)
I²t: Pre-arcing 25 A²s; clearing 150 A²s @415V; 250 A²s @660V
Pre-arcing I²t: 25
Total I²t: 250
Application: DC common bus · DC drives · Power converters/rectifiers · Reduced-voltage starters
Standard: BS88 Part 4 · IEC 60269-4
Fuse Speed: High-Speed
Utilization Class: aR
Approvals: CCC · CE · UL
Certifications: CE · CCC · UL
Watts loss at rated current: 7 W. Excellent cycling capability with low arc voltage and low energy let-through.
