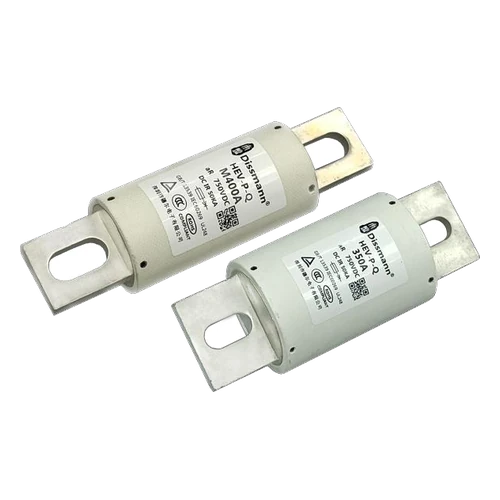

Dissmann HEV-P-Q-500 500A AC690V / DC700V (IEC) / DC750V (UL) aR Industrial Fuse
● Contact for AvailabilityCatalogue-listed Dissmann HEV-P-Q-500: 500A AC690V / DC700V (IEC) / DC750V (UL) aR, AC100KA/DC50KA breaking capacity.
Rated Current500A
Rated VoltageAC690V / DC700V (IEC) / DC750V (UL)
Breaking CapacityAC100KA/DC50KA
PackageBolt Type HEV-P-Q
QUICK RFQ
Request a quote for HEV-P-Q-500
Submit directly from this product page. We will reply with availability, lead time and pricing.
Part NumberHEV-P-Q-500BrandDissmannRequested Qty100
Dissmann HEV-P-Q-500 500A AC690V / DC700V (IEC) / DC750V (UL) aR Industrial Fuse
Breaking capacity: AC100KA/DC50KA; Catalogue requirements: UL248-20|ISO8820|JASO-D622; Catalogue marks/remarks: RoHS; Package / format: Bolt Type HEV-P-Q; Pre-arcing I²t: 44000.0 A²s; Total I²t: 165000.0 A²s; Catalogue heading uses AC690V/DC750V; detailed note specifies DC700V for IEC and DC750V for UL. Catalogue power dissipation: 108 W.
Confirm current, voltage, breaking capacity and installation requirements against the supplied Dissmann catalogue before final design-in.
Technical Specifications
- Part Number
- HEV-P-Q-500
- Manufacturer Part Number
- HEV-P-Q-500
- Series
- HEV-P-Q Series
- Fuse Type
- Industrial Fuse
- Current Rating
- 500A
- Voltage Rating
- AC690V / DC700V (IEC) / DC750V (UL)
- AC / DC
- AC · DC
- Breaking Capacity
- AC100KA/DC50KA
- Pre-arcing I²t
- 44000
- Total I²t
- 165000
- Package / Dimensions
- Bolt Type HEV-P-Q
- Mounting
- Bolt-On
- Standard
- ISO8820 · JASO D622 · UL248-20
- Terminal Type
- Bolt Lug
- Utilization Class
- aR
- Approvals
- RoHS
- Certifications
- RoHS
- Catalogue heading uses AC690V/DC750V; detailed note specifies DC700V for IEC and DC750V for UL. Catalogue power dissipation
- 108 W.
