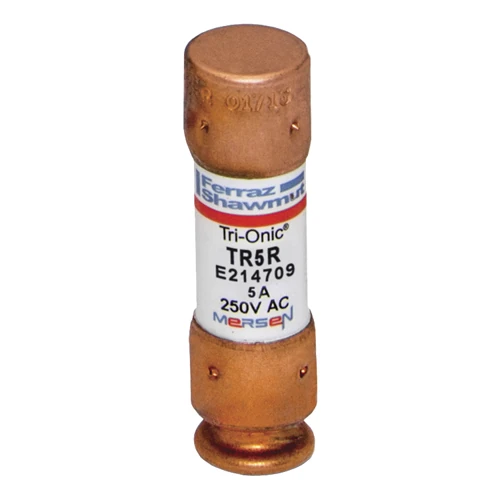

Mersen TR5R 5A RK5 Time-Delay Fuse

Name: Mersen TR5R 5A RK5 Time-Delay Fuse
Brand: Mersen
SKU: TR5R

Part Number: TR5R

● Check availability

Compare Mersen TR5R as a 5A Class RK5 time-delay current-limiting fuse rated 250 VAC / 160 VDC. Its ferrule configuration is intended for motor and related protection work. Confirm the current rating against normal load and inrush conditions.

Rated Current5A

Rated Voltage250 VAC / 160 VDC

Breaking Capacity200 kA AC / 20 kA DC

PackageClass RK5 Ferrule

Tags

5A class rk5 current-limiting Ferrule Mersen TR-R TR5R

Compare Mersen TR5R for applications that call for a 5A Class RK5 time-delay current-limiting fuse with a 250 VAC / 160 VDC rating. The ferrule version is specified with 200 kA AC / 20 kA DC interrupting capability and is suited to motor, transformer, feeder, branch circuit, service entrance. Confirm the current rating against normal load and inrush conditions. FuseStock keeps the manufacturer reference and series data together for technical comparison and sourcing.

Technical Specifications

Part Number: TR5R
Manufacturer Part Number: TR5R
Series: TR-R Series
Fuse Type: Current-Limiting Fuse
Current Rating: 5A
Voltage Rating: 250 VAC / 160 VDC
AC / DC: AC/DC
Breaking Capacity: 200 kA AC / 20 kA DC
Package / Dimensions: Class RK5 Ferrule
Mounting: Cartridge / Clip · Fuse Block
Application: Branch Circuit Protection · Feeder circuits · Motor · Service entrance · Transformer
Standard: CSA C22.2 No. 248.12 · UL 248-12
Terminal Type: Ferrule
Fuse Speed: Time Delay
Utilization Class: Class RK5
Approvals: CSA · UL Listed
Certifications: UL Listed|CSA Certified
