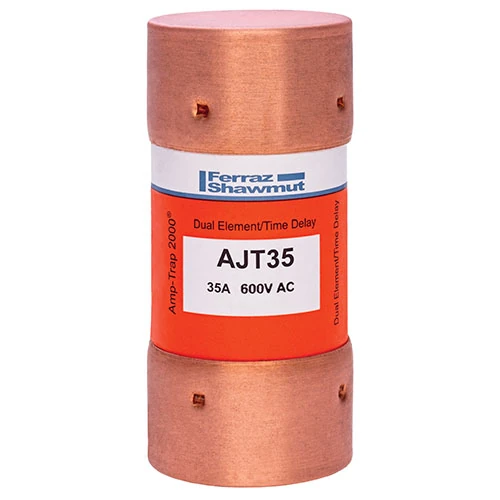

Mersen AJT35 35A 600V Class J Time-Delay Fuse

Name: Mersen AJT35 35A 600V Class J Time-Delay Fuse
Brand: Mersen
SKU: AJT35

Part Number: AJT35

● Contact for Availability

Part AJT35 covers the 35A rating point in Mersen’s AJT Series. Its rating set pairs 600V AC / 500V DC operation with 200kA AC / 100kA DC interrupting performance. This makes it suitable where high current limitation with time-delay performance for motor and transformer inrush.

Rated Current35A

Rated Voltage600V AC / 500V DC

Breaking Capacity200kA AC / 100kA DC

PackageClass J

Tags

AJT Series AJT35 Class J Mersen time-delay

AJT35 is Mersen’s 35A catalog option in the AJT Series. Mersen publishes 600V AC / 500V DC for this rating, together with 200kA AC / 100kA DC interrupting capability. The protection profile emphasizes high current limitation with time-delay performance for motor and transformer inrush. The Class J format uses ferrule / blade (amp-dependent) terminals with cartridge/clip mounting. Typical selection contexts include Motor Circuits, Mains, Feeders. Use the official Mersen datasheet to confirm final coordination and dimensions.

Technical Specifications

Part Number: AJT35
Manufacturer Part Number: AJT35
Series: AJT Series
Fuse Type: Current-Limiting Time-Delay Class J Fuse
Current Rating: 35A
Voltage Rating: 600V AC / 500V DC
AC / DC: AC/DC
Breaking Capacity: 200kA AC / 100kA DC
Package / Dimensions: Class J
Mounting: Cartridge / Clip
Application: Branch Circuit Protection · Control panels · Feeder circuits · Motor Circuits · Switchboard Mains · Transformers
Standard: CSA C22.2 No. 248.8 · IEC 60269-1/-2 · UL 248-8
Terminal Type: Ferrule / Blade (amp-dependent)
Fuse Speed: Time Delay
Utilization Class: Class J
Approvals: CSA · UL Listed
Certifications: UL Listed · CSA
