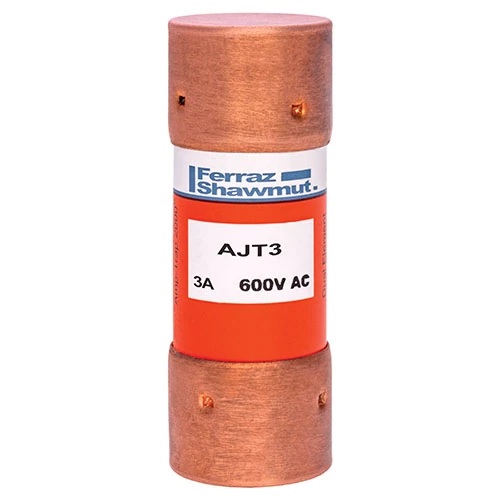

Mersen AJT3 3A 600V Class J Time-Delay Fuse

Name: Mersen AJT3 3A 600V Class J Time-Delay Fuse
Brand: Mersen
SKU: AJT3

Part Number: AJT3

● Contact for Availability

AJT3 extends the Mersen AJT Series lineup with a 3A rating. Published electrical limits are 600V AC / 500V DC with 200kA AC / 100kA DC short-circuit capability. This makes it suitable where high current limitation with time-delay performance for motor and transformer inrush.

Rated Current3A

Rated Voltage600V AC / 500V DC

Breaking Capacity200kA AC / 100kA DC

PackageClass J

Tags

AJT Series AJT3 Class J Mersen time-delay

At 3A, AJT3 is one of the rated options available in Mersen’s AJT Series. Its electrical envelope is 600V AC / 500V DC, supported by 200kA AC / 100kA DC interrupting data. The protection profile emphasizes high current limitation with time-delay performance for motor and transformer inrush. The Class J format uses ferrule / blade (amp-dependent) terminals with cartridge/clip mounting. Typical selection contexts include Transformers, Control Panels, Motor Circuits. Use the official Mersen datasheet to confirm final coordination and dimensions.

Technical Specifications

Part Number: AJT3
Manufacturer Part Number: AJT3
Series: AJT Series
Fuse Type: Current-Limiting Time-Delay Class J Fuse
Current Rating: 3A
Voltage Rating: 600V AC / 500V DC
AC / DC: AC/DC
Breaking Capacity: 200kA AC / 100kA DC
Package / Dimensions: Class J
Mounting: Cartridge / Clip
Application: Branch Circuit Protection · Control panels · Feeder circuits · Motor Circuits · Switchboard Mains · Transformers
Standard: CSA C22.2 No. 248.8 · IEC 60269-1/-2 · UL 248-8
Terminal Type: Ferrule / Blade (amp-dependent)
Fuse Speed: Time Delay
Utilization Class: Class J
Approvals: CSA · UL Listed
Certifications: UL Listed · CSA
