The A4BQ Series includes A4BQ5000, rated at 5000A. Its key ratings are 600V AC and 200kA AC interrupting capability. Its selection value is strongest where the circuit needs 4-second time delay at 500% rating and very high current limitation.
Submit directly from this product page. We will reply with availability, lead time and pricing.

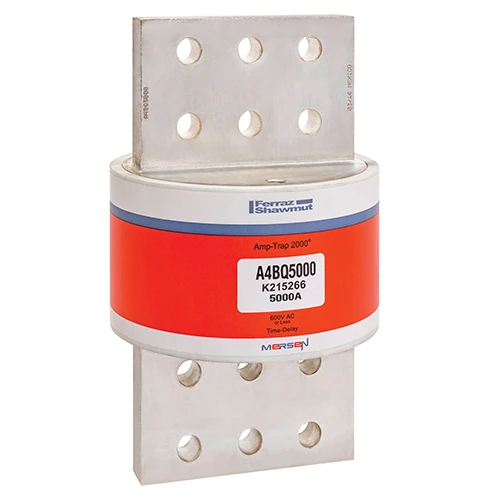

The Mersen A4BQ5000 combines a 5000A rating with the protection characteristics of the A4BQ Series. Electrical limits are 600V AC, with 200kA AC interrupting capability. The series is engineered around 4-second time delay at 500% rating and very high current limitation. The Class L format uses blade terminals with cartridge/clip mounting. Typical selection contexts include Large Motors, Lighting & Heating, Circuit Breaker Backup. Final application limits and dimensional details should be verified against Mersen’s official datasheet.
