SPF03.5 is a Littelfuse gPV / PV fuse rated 3.5A for 1000 V DC. It uses Fast-Acting / Full-Range operation with 20 kA DC interrupting capability, suited to pv inverters.
Submit directly from this product page. We will reply with availability, lead time and pricing.
Specified for circuit protection, Littelfuse SPF03.5 combines a 3.5A rating with 1000 V DC in the SPF family. The 10×38 mm Solar PV Fuse format uses Fuse holder / cartridge mounting and Ferrule terminals, with 20 kA DC fault-interruption data. Package detail: 10×38 mm midget; 10.31 mm diameter × 38.1 mm length. Typical applications include PV inverters; combiner boxes; battery charge controllers. Published standards/approvals reference UL 248-1; UL 248-19; IEC 60269-6. Full-range 1000 V DC PV fuse; interrupting rating is 20 kA for this ampere range. Melamine body with copper-alloy caps. Verify coordination, derating and final suitability against the current Littelfuse datasheet before design-in.

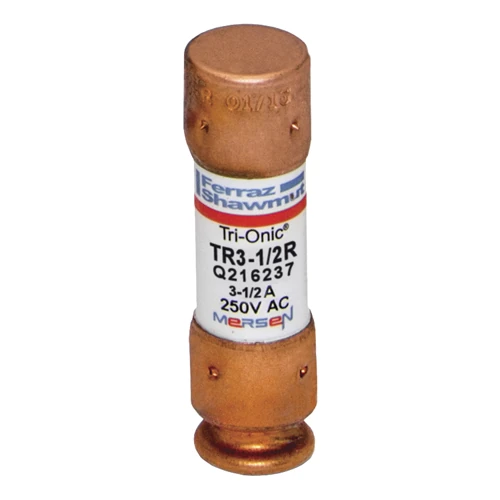

TR3-1/2R
3.5A · 250 VAC / 160 VDC
GFN3-1/2
3.5A · 250 VAC
ATQ3-1/2
3.5A · 500 VAC
ATDR3-1/2
3.5A · 600 VAC / 300 VDC

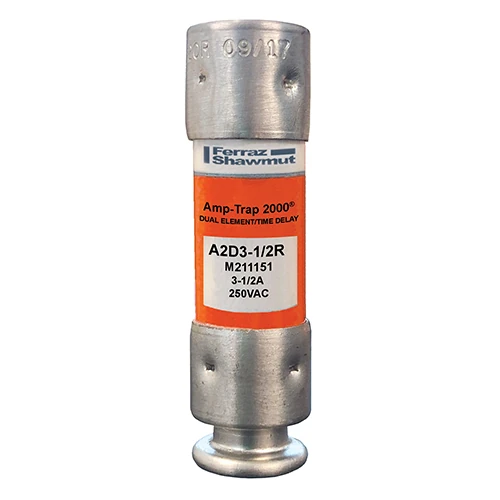

A2D3-1/2R
